SpkrShell Architectural CW1-DS In-Ceiling Enclosure for Sonos & Denon (Discontinued)

SS-CW1-DS-RND-W

Availability:Ships in about 2-3 Days

Sold As: Sold As Each

Options:

$259.00 $279.00

The SpkrShell Architectural Series CW1-DS In-Ceiling Enclosure allows you to easily install select SONOS® speakers like Era 100, ONE, ONE SL or the older PLAY:1, and the Denon Heos systems Home 150, with a clean professionally installed look. Similar sized wireless streaming powered speakers may also work.

Fits in-ceiling, or even in-wall (*requires a 5-1/4" wall depth). Basically, these will work anywhere you have space in your ceiling/wall and available always-on power. Finally, you can use your wireless audio system speakers virtually anywhere with a clean professional installed look! Ready to wire to your homes electrical system, includes built-in UL listed junction box, and a built-in speaker power cord. Just add your compatible wireless speaker!

The unique design provides a wide flared sound port, ventilation for your speaker, allows the speakers voice feature to still function in most installations, and is completely RF permissive for solid Wi-Fi functionality.

This enclosure includes a Round white grille. But works with our optional premium replacement grilles sold separately, if you would like a different shape of color.

Looking for support of more speakers? checkout our latest version, the CW1-DSB.

Need Network or PoE support for speakers like ERA100 PRO? Checkout our CW1-PRO version.

*Speaker shown for example only, speaker not included with enclosure.

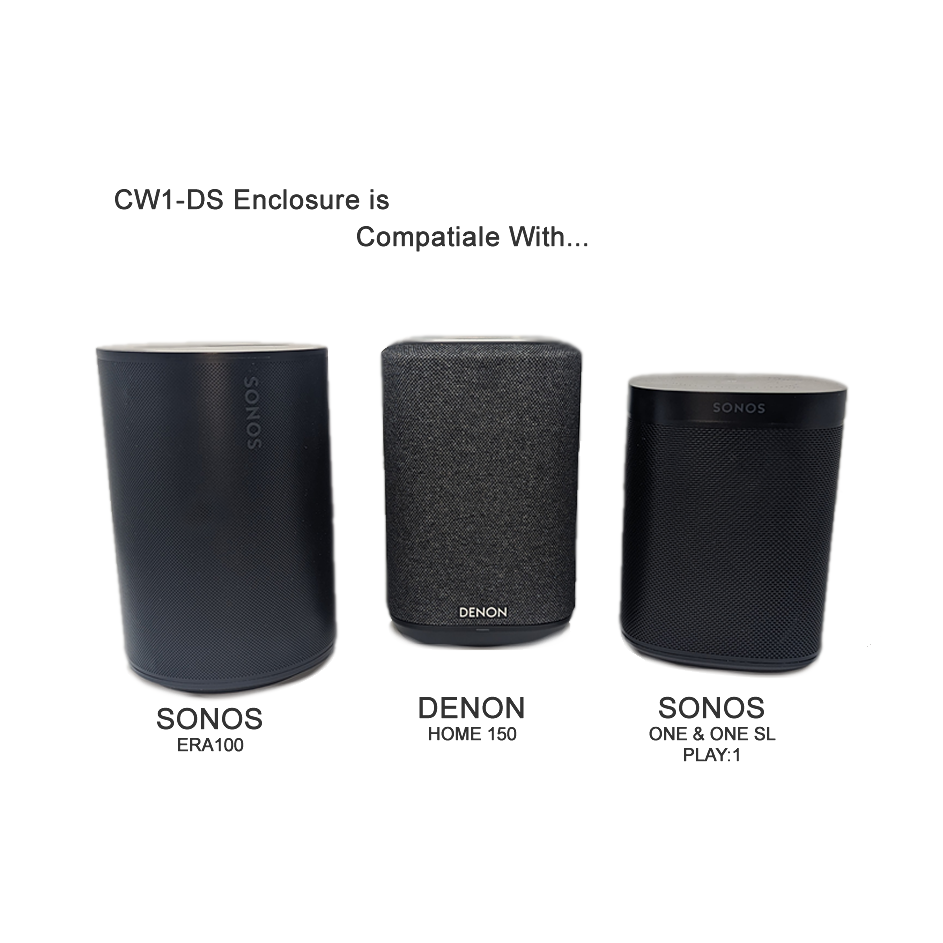

This enclosure is designed to fit the following products:

Sonos One SL
Sonos Play:1
Sonos One
Sonos ERA100
Denon Home 150

* REPLACING ONE OF OLDER ENCLOSURES? The new version of our enclosures are slightly larger in diameter and depth compared to our older SL1-S (excluding CW1-R enclosure). So it is possible to remove your old enclosure, enlarge the ceiling hole and install the CW1-DS or CW1-PRO in it's place. Electrical connections are the same. Note that if a SL1 Pre-Drywall bracket was used, it will need to be removed (cut-out) before installing the CW1-DS enclosure.

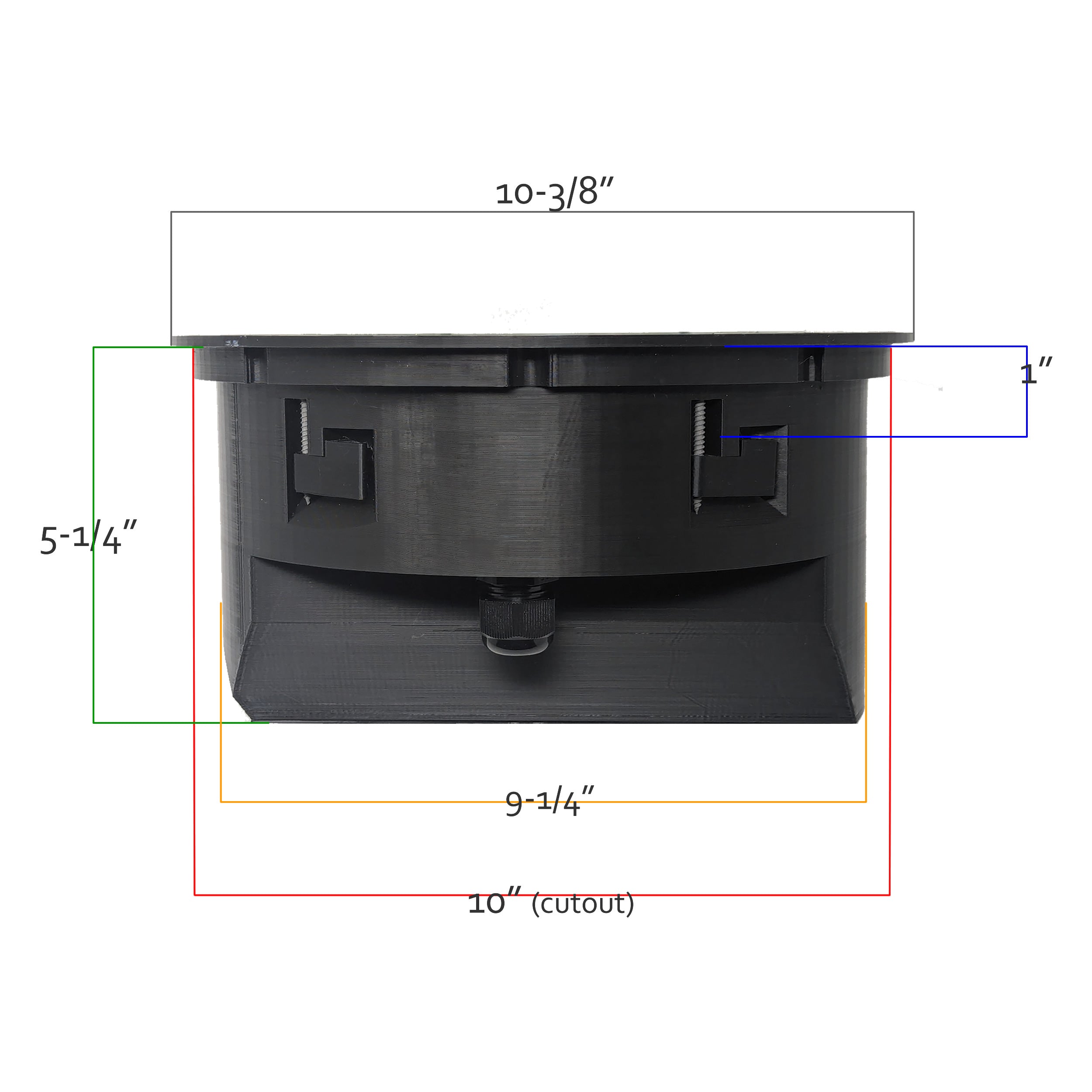

Enclosure Outer Dimension: 10-3/8" wide x 5-1/4" deep
Grille Dimensions: 10-7/8" (Round) / 10-5/8" (Square)
Cut-Out Dimensions 10" (template included)

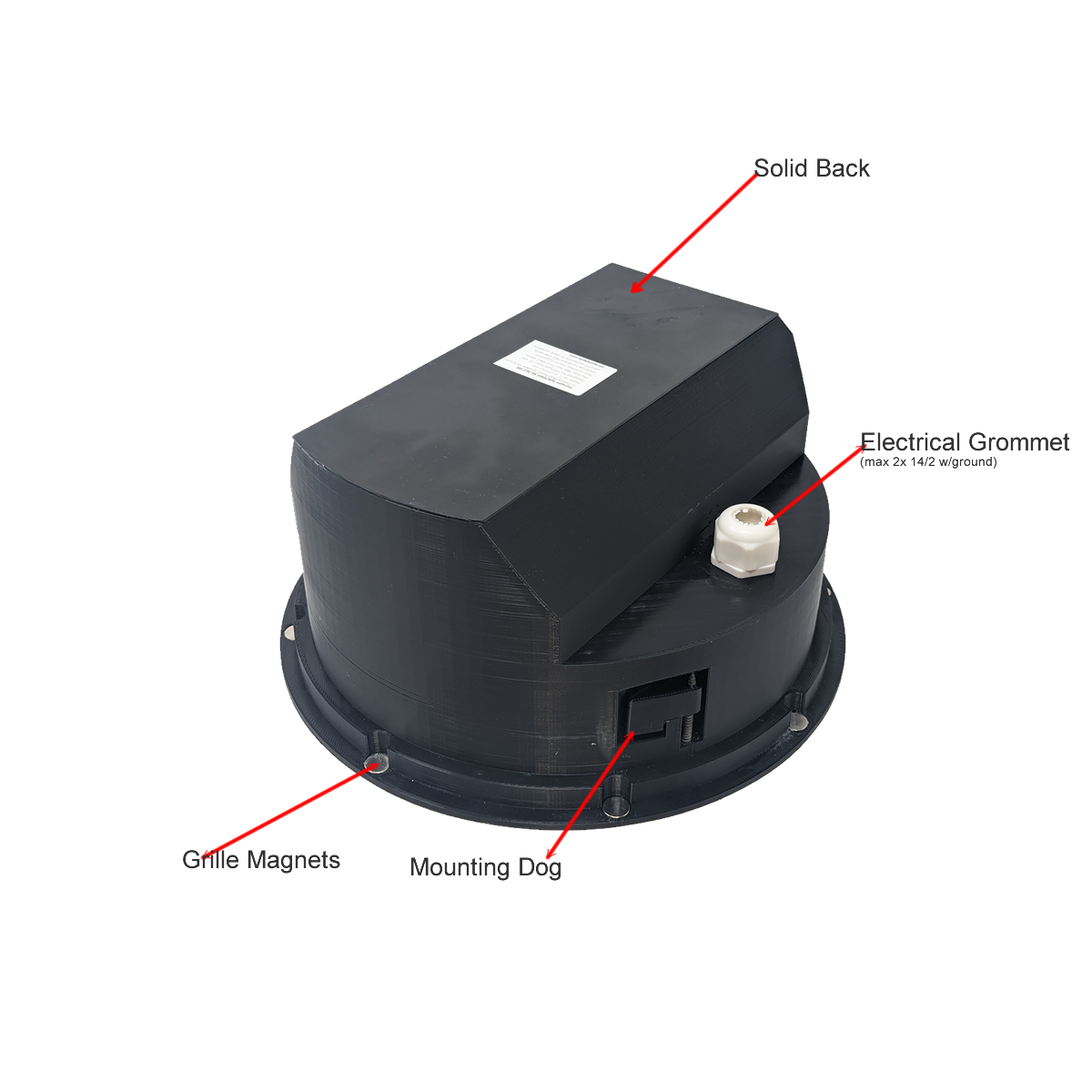

Installation Type: Retrofit Ceiling or Wall, Dog Clamps
Weight: 3 pounds
Color: White/Black(White Grille)
Power Rating: 100-250 VAC

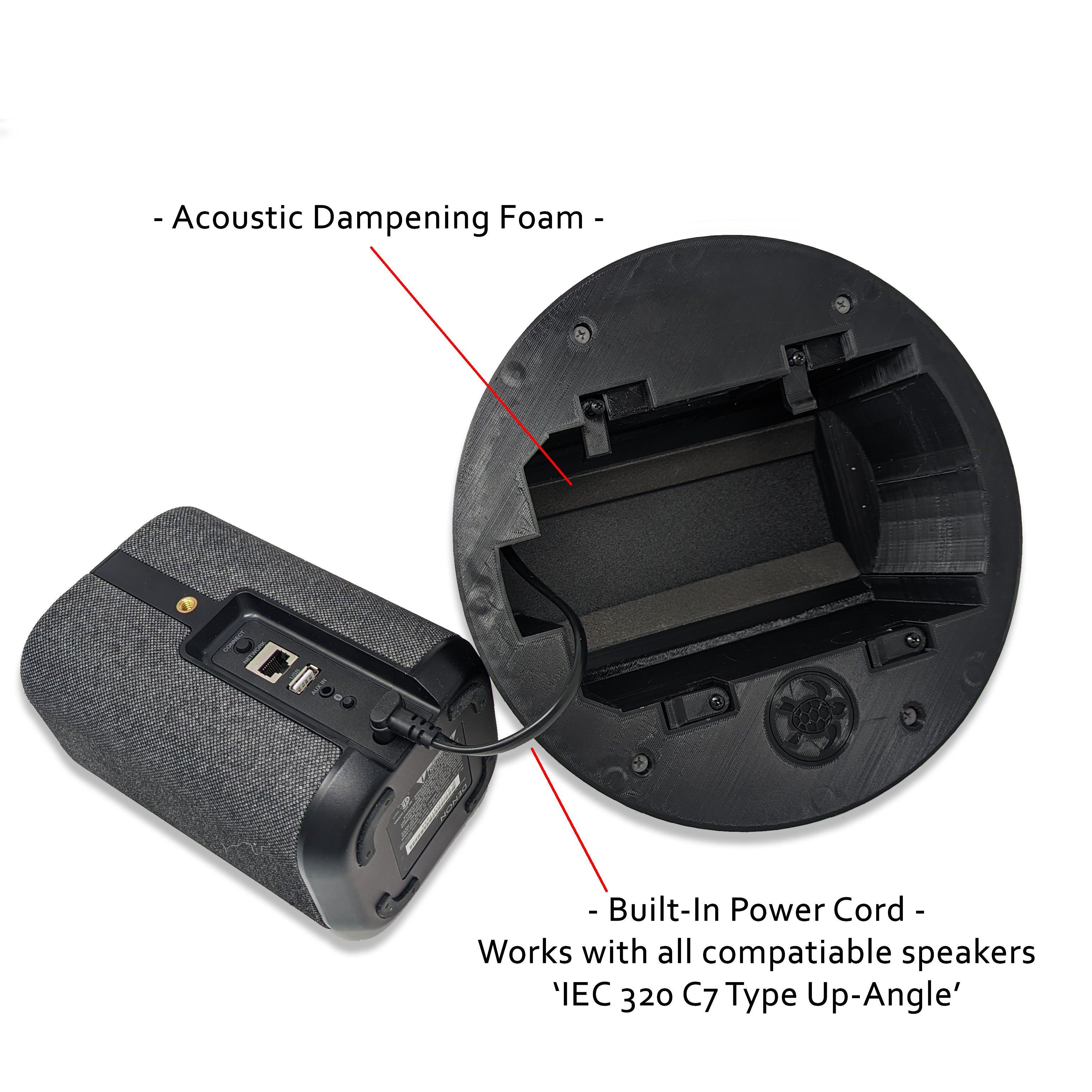

Power Connector: C7 (figure 8) for connecting speaker device / Junction Box for hardwire to building electrical.
Electrical Other:

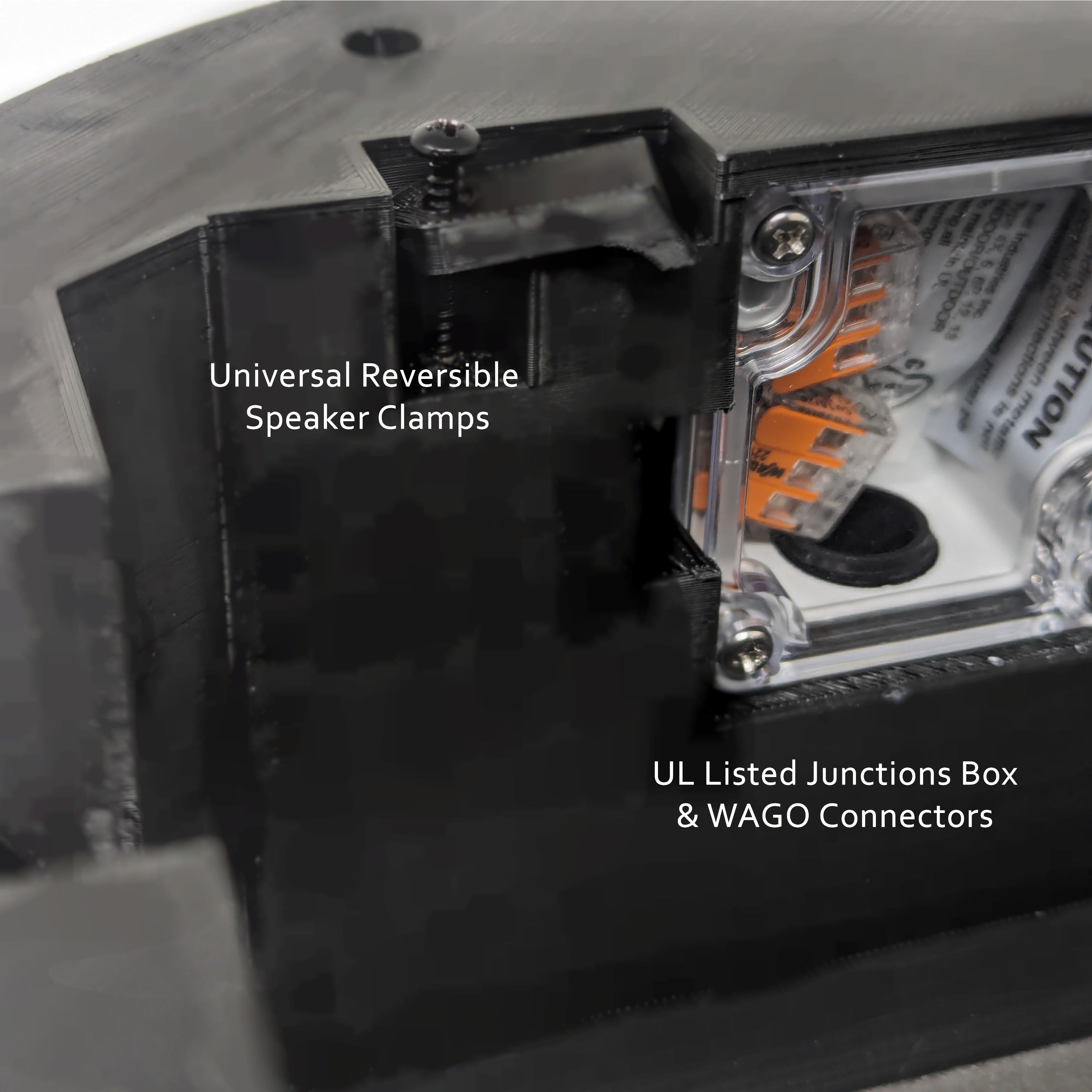

2x WAGO 221-413 Wire Lever Nuts included.
UL Listed Junction box fits up to two 14 awg NM (Romex style) wires allowing daisy chain of units.
Material: Various Plastics (Grill is steel with moisture resistant coating)
IC contact compliant for use against insulation
Installation Type: Tension Dog Clamps for clamping to drywall or similar surfaces with thickness up to 1" (7/8" max recommended)

IMPORTANT

Electrical knowledge needed to install. If you are not sure how to do this please contact a licensed professional for installation. Electrical collar and Junction box are plastic. Wiring should be GFCI or better protected when installed in damp locations.

Temperature and UV Exposure Enclosure is not UV rated; ambient temperature should not exceed 150' F, avoid direct exposure to sun light or radiant heat sources. Do not exceed the recommended operating temperature of your installed speaker, see speaker documentation for details.

Moisture-Resistant (not waterproof) rating applies when installed out of direct weather and water spray, mounted in-ceiling, in a rated ceiling material with junction box and grille properly installed, when used with one of the compatible speakers (Sonos One, Sonos SL, Sonos Play:1, Sonos Era 100, Denon Home 150 ) which are all humidity resistant.

In-Wall Use is possible, provided the wall depth is at least 5-1/4" from the finished surface to the back of the cavity. This product will NOT fit a standard 2x4" wall.

Retrofit Install Ready enclosure is designed for retro-fit installation, simply cut hole, attach electrical connection, and secure mounting dogs.

New Construction Installs Pre-drywall? Purchase one our PCRB Rough-In Brackets separately for an easier installation later.

Drop Ceiling install is simple with our universal Drop-Ceiling Support Bracket, sold separately.

INSTALL GUIDE (PDF)

AUDIO TUNING GUIDE (PDF)

Warranty Statement (PDF)
