SpkrShell Architectural CW1-DSB In-Ceiling Smart-Speaker Enclosure for Sonos & more

SpkrShell Architectural CW1-DSB In-Ceiling Smart-Speaker Enclosure for Sonos & more

SS-CW1-DSB-RND-W

$274.00 USD
$0.00 USD $274.00 USD
Sale Sold out
Shipping calculated at checkout.

LEAD TIME: Ships in about 7-10 Days

Sold As Each

Grille Shape
Grille Color

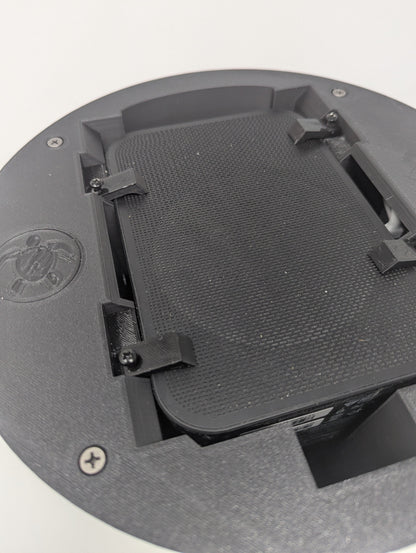

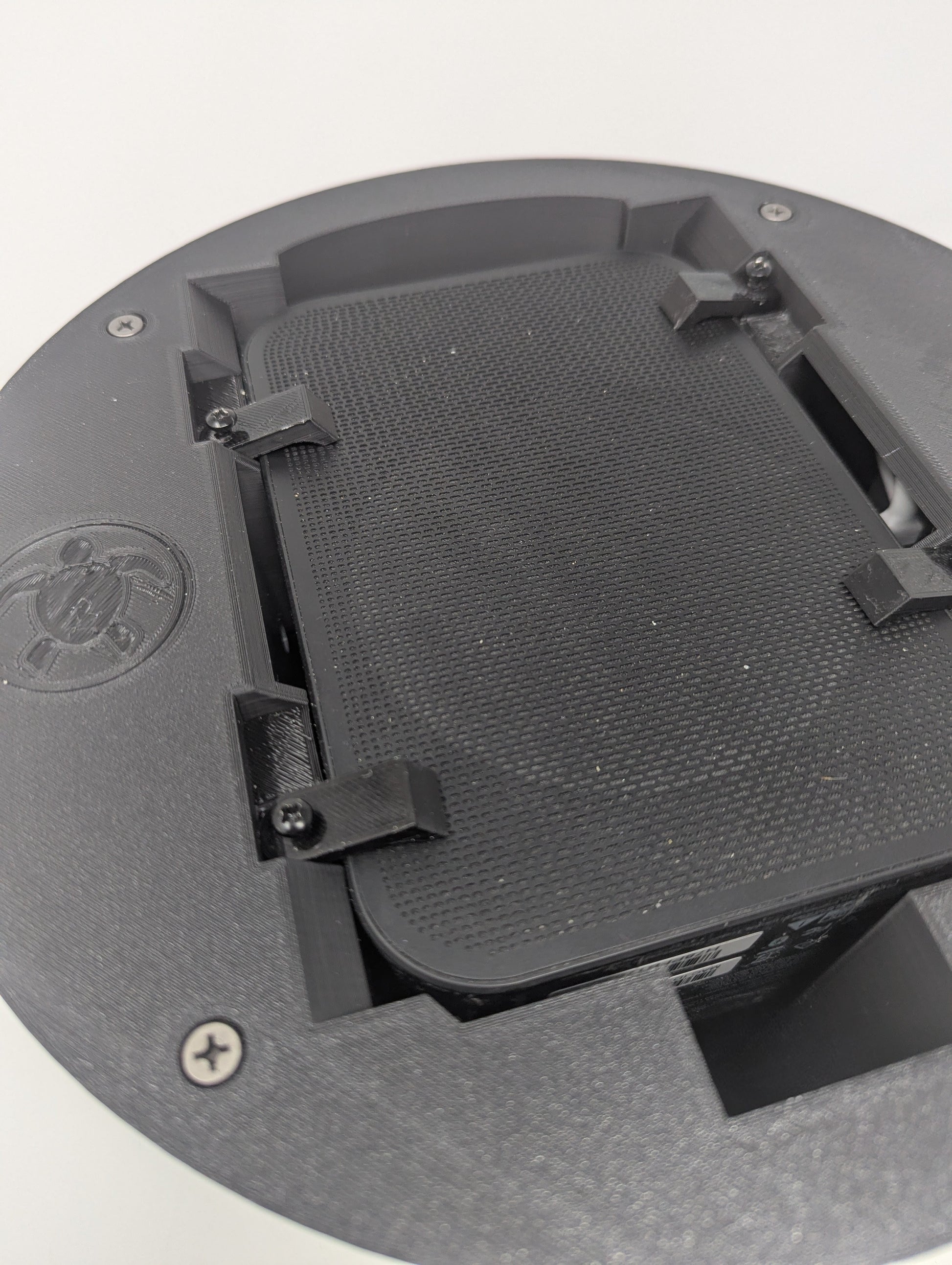

The SpkrShell Architectural Series CW1-DSB In-Ceiling Smart-Speaker Enclosure allows you to easily install select SONOS® speakers like Era 100, ONE, ONE SL or the older PLAY:1, Denon Home 150, & now Bluesound Flex2! Similar sized wireless streaming powered speakers may also work.

Fits in-ceiling, or even in-wall (*requires a 5-5/8" depth). Basically, these will work anywhere you have space in your ceiling/wall and available always-on AC power to wire it to. Finally, you can use your wireless audio system speakers virtually anywhere with a clean professional installed look!

The CW1-DSB version improves over our popular CW1-DS model by adding additional room (depth) allowing for support of more speakers and brands, such as Bluesound.

This enclosure includes your option of a premium Round or Square prefinished in black or white, paintable, grilles to best match your décor. The unique design provides a wide flared sound port, ventilation for your speaker, allows the speakers voice feature to still function in most installations, and is completely RF permissive for solid Wi-Fi functionality.

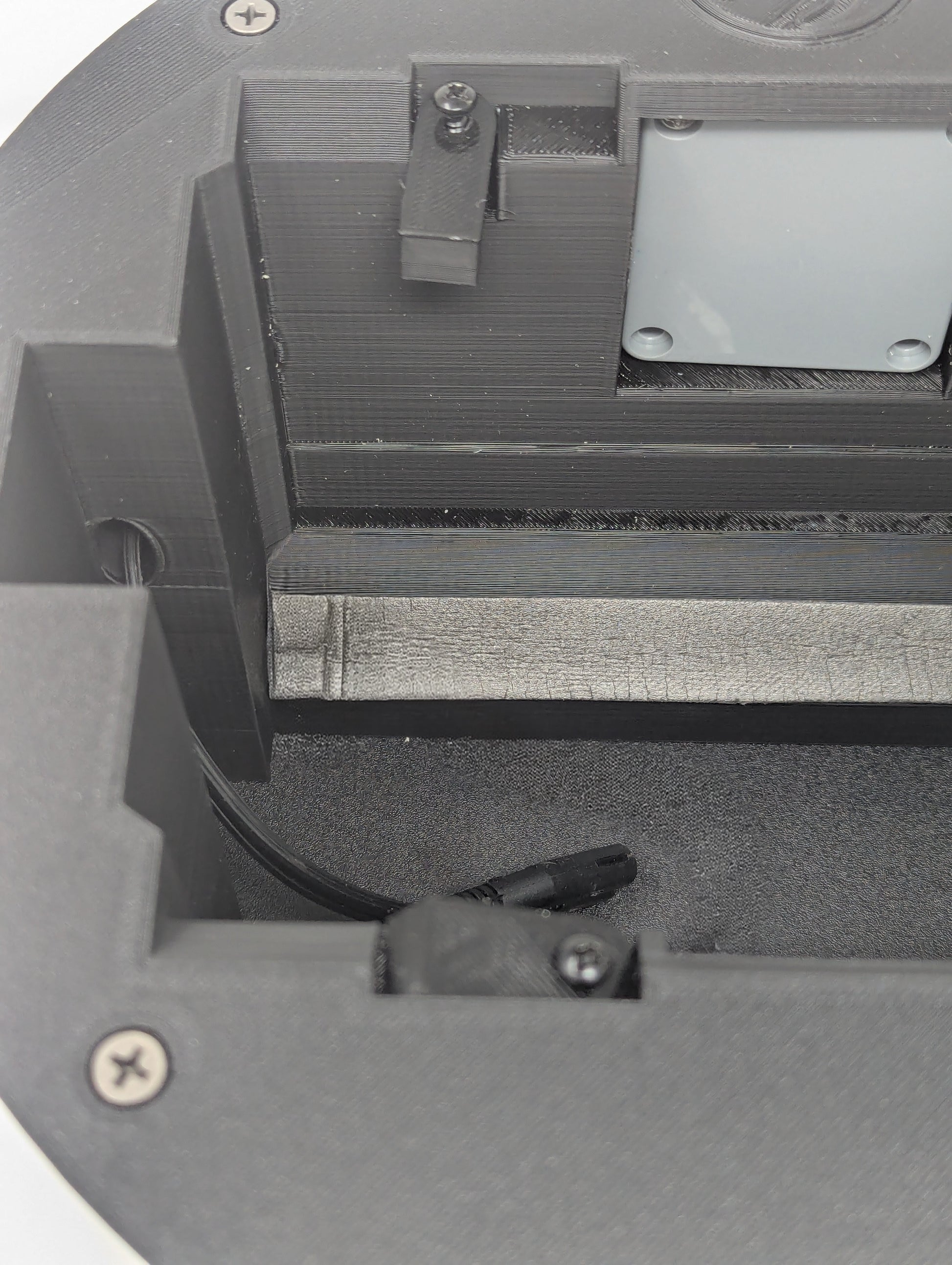

Ready to wire to your homes electrical system, includes built-in UL listed junction box and a built-in power cord. Supports 100-240v power. Just add your favorite compatible speaker.

*Speaker shown for example only, speaker not included with enclosure.

Compatibility

This enclosure is designed to fit the following products:

  • Sonos One SL
  • Sonos Play:1
  • Sonos One
  • Sonos ERA100
  • Denon Home 150
  • Bluesound PulseFlex 2i


* REPLACING AN OLDER ENCLOSURE? The newer version of our enclosures are the same or slightly larger than our other/older enclosures so it is possible to remove your old enclosure and replace it with our newer models with relatively little work. But be sure to check clearance in your structure, especially for depth.

Features & Specs

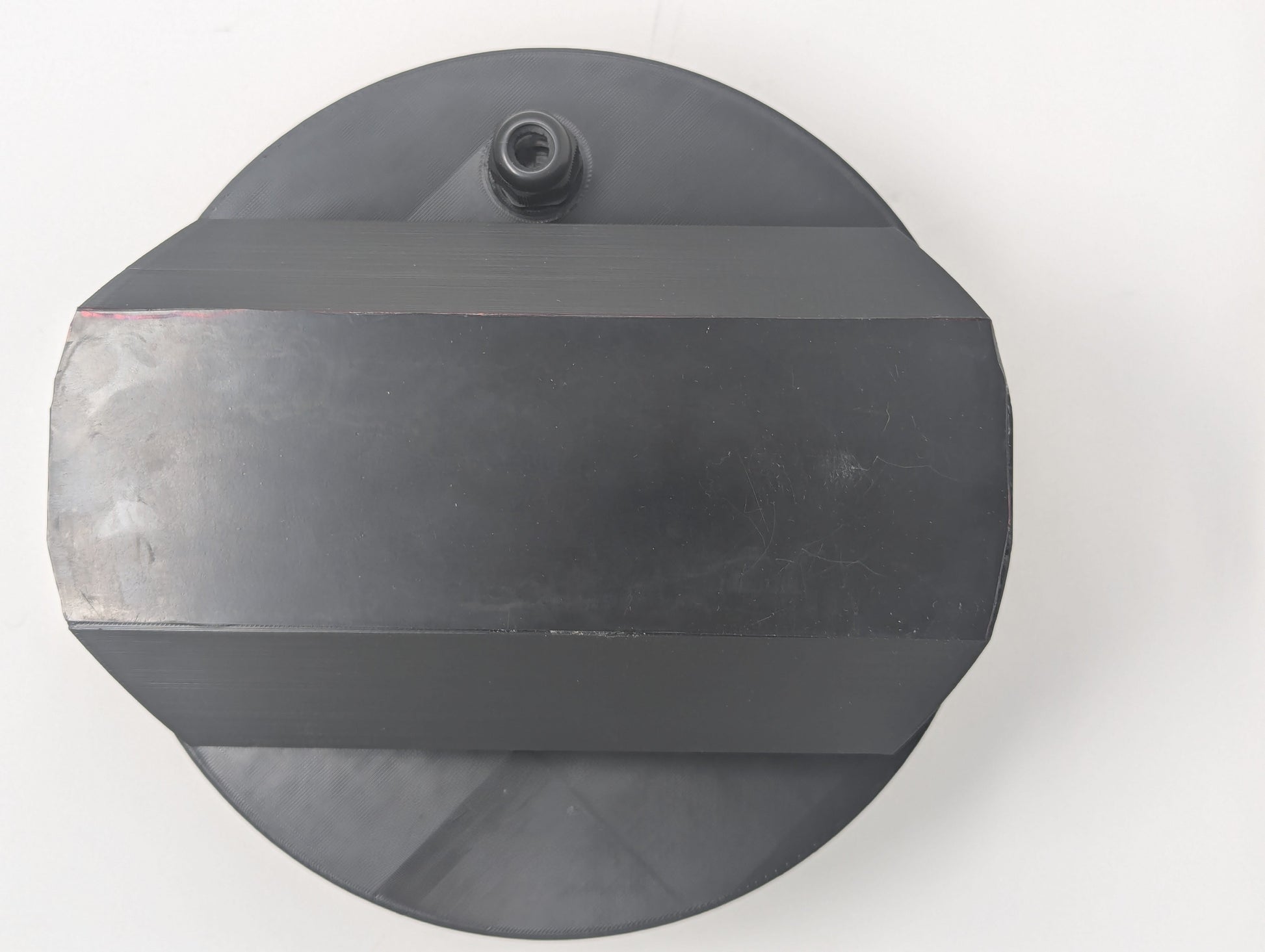

  • Enclosure Outer Dimension: 10-3/8" wide x 5-5/8" deep
  • Grille Dimensions: 10-7/8" (Round) / 10-5/8" (Square)
  • Cut-Out Dimensions 10" (template included)
  • Installation Type: Retrofit Ceiling or Wall, Dog Clamps
  • Weight: 3 pounds
  • Color: White/Black(White Grille)
  • Power Rating: 100-250 VAC
  • Power Connector: C7 (figure 8) for connecting speaker device / Junction Box for hardwire to building electrical.
  • Electrical Other:
    2x WAGO 221-413 Wire Lever Nuts included.
    UL Listed Junction box fits up to two 14 awg NM (Romex style) wires allowing daisy chain of units.
  • Material: Various Plastics (Grill is steel with moisture resistant coating)
  • IC contact compliant for use against insulation
  • Installation Type: Tension Dog Clamps for clamping to drywall or similar surfaces with thickness up to 1" (7/8" max recommended)

IMPORTANT

Electrical knowledge needed to install. If you are not sure how to do this please contact a licensed professional for installation. Electrical collar and Junction box are plastic. Wiring should be GFCI or better protected when installed in damp locations.

Temperature and UV Exposure Enclosure is not UV rated; ambient temperature should not exceed 150' F, avoid direct exposure to sun light or radiant heat sources. Do not exceed the recommended operating temperature of your installed speaker, see speaker documentation for details.

Moisture-Resistant (not waterproof) rating applies when installed out of direct weather and water spray, mounted in-ceiling, in a rated ceiling material with junction box and grille properly installed, when used with one of the compatible speakers (Sonos One, Sonos SL, Sonos Play:1, Sonos Era 100, Denon Home 150 ) which are all humidity resistant.

In-Wall Use is possible, provided the wall depth is at least 5-5/8" from the finished surface to the back of the cavity. This product will NOT fit a standard 2x4" wall.

Retrofit Install Ready enclosure is designed for retro-fit installation, simply cut hole, attach electrical connection, and secure mounting dogs.

New Construction Installs Pre-drywall? Purchase one our PCRB Rough-In Brackets separately for an easier installation later.

Drop Ceiling install is simple with our universal Drop-Ceiling Support Bracket, sold separately.
