In-Ceiling/wall Universal Device Enclosure Flush Mount

A white square in-ceiling AP mount device enclosure with cables visible, mounted on a ceiling.

1/15

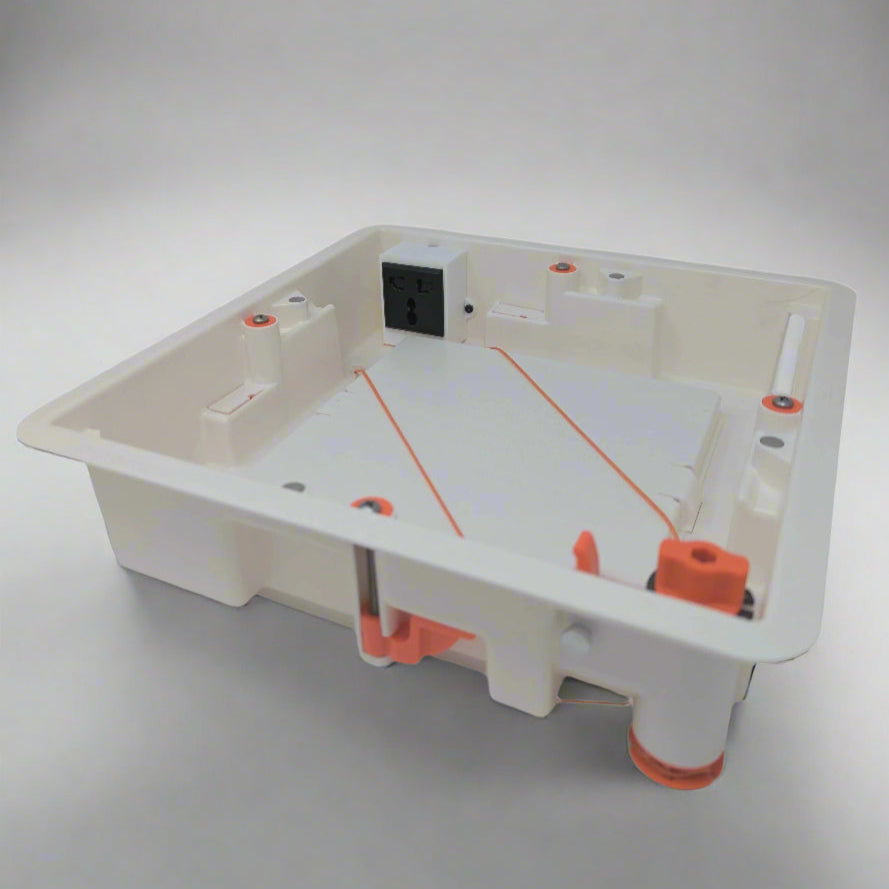

CW1-APMT Universal In-Ceiling/Wall Flush Mount Device Enclosure

CW1-APMT-ENCL

Availability:Ships in about 10-15 Days

Sold As: Sold As Each

Options:

ColorWhite

Power

Package Type

$169.00

Wireless Access Points and other small electronics are now just a fact of life around the home, office, or shop... they are everywhere. But there are very few, if any, easy and affordable options to make them blend into the rooms aesthetic... until now. Meet the CW1-APMT from Terrapin!

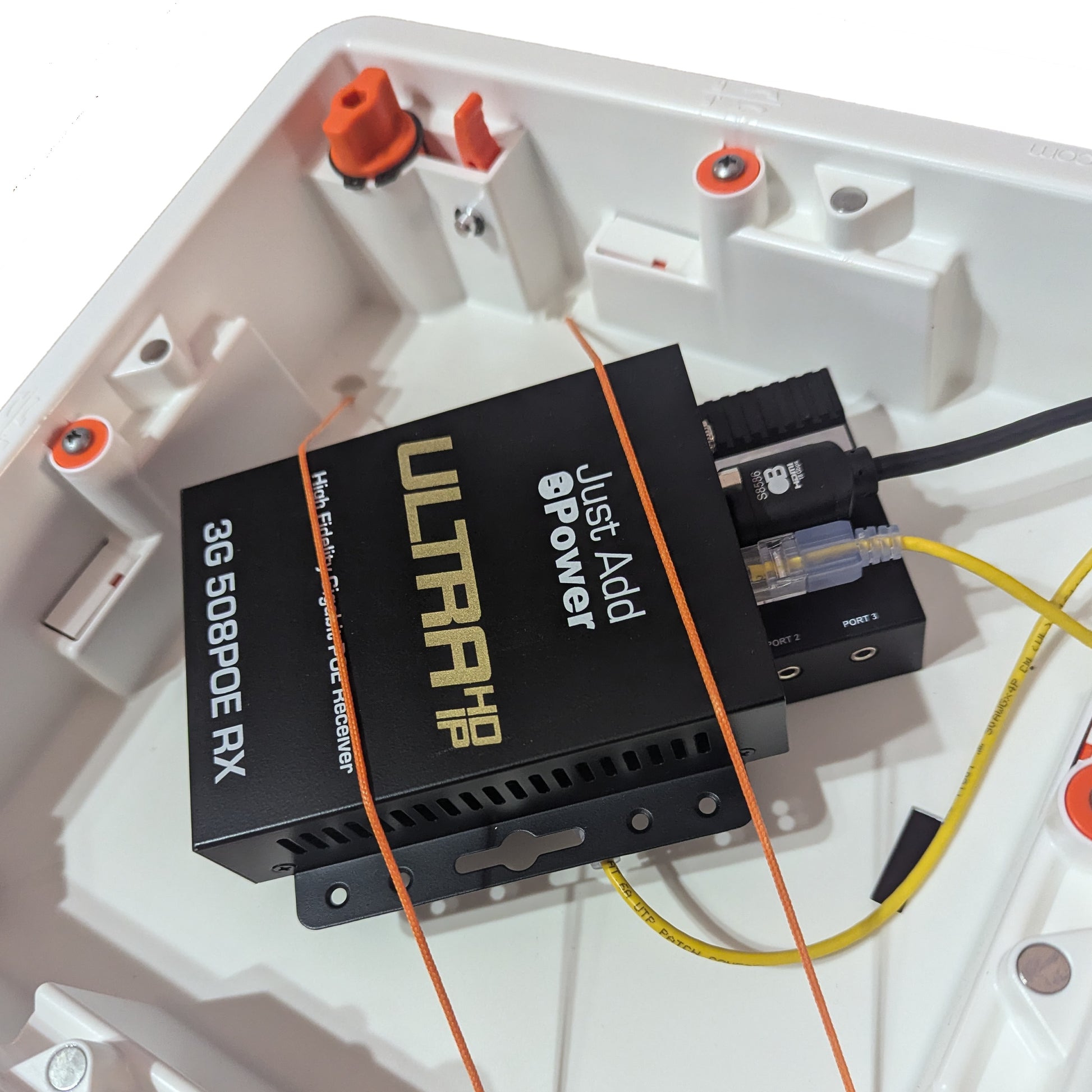

This in-plane universal enclosure works in-ceiling or in-wall, quickly flush mount any access point or small device! Designed specifically to house Wireless WiFi Access Point AP's and set them at the optimal position, just up inline with the ceiling of the room to allow for best coverage. You can really install just about any device though, any thing you want to hide that will fit - like automation, audio & video devices or environmental sensors.

Three Power Options:

None - Ready for you to supply your own ethernet cable & PoE

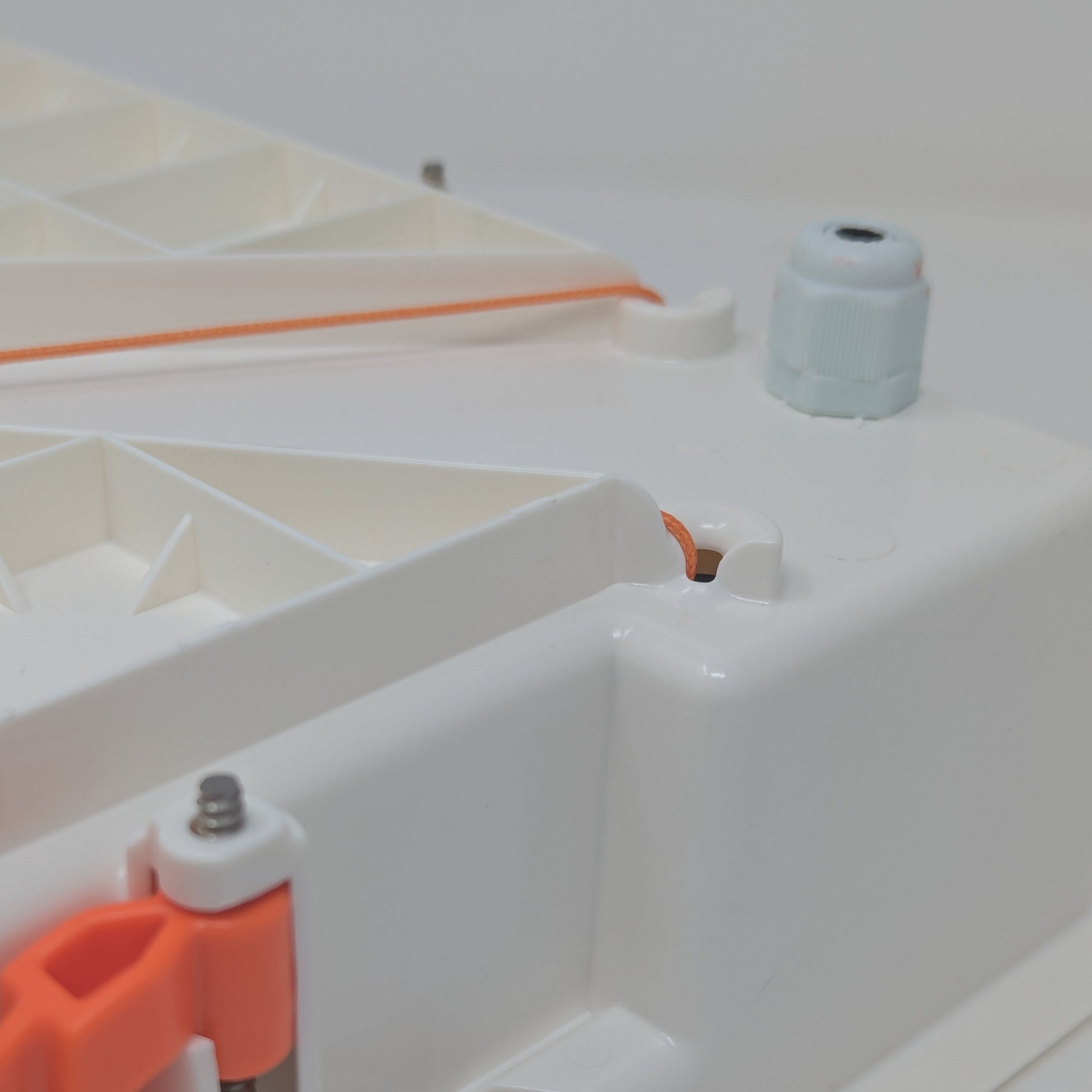

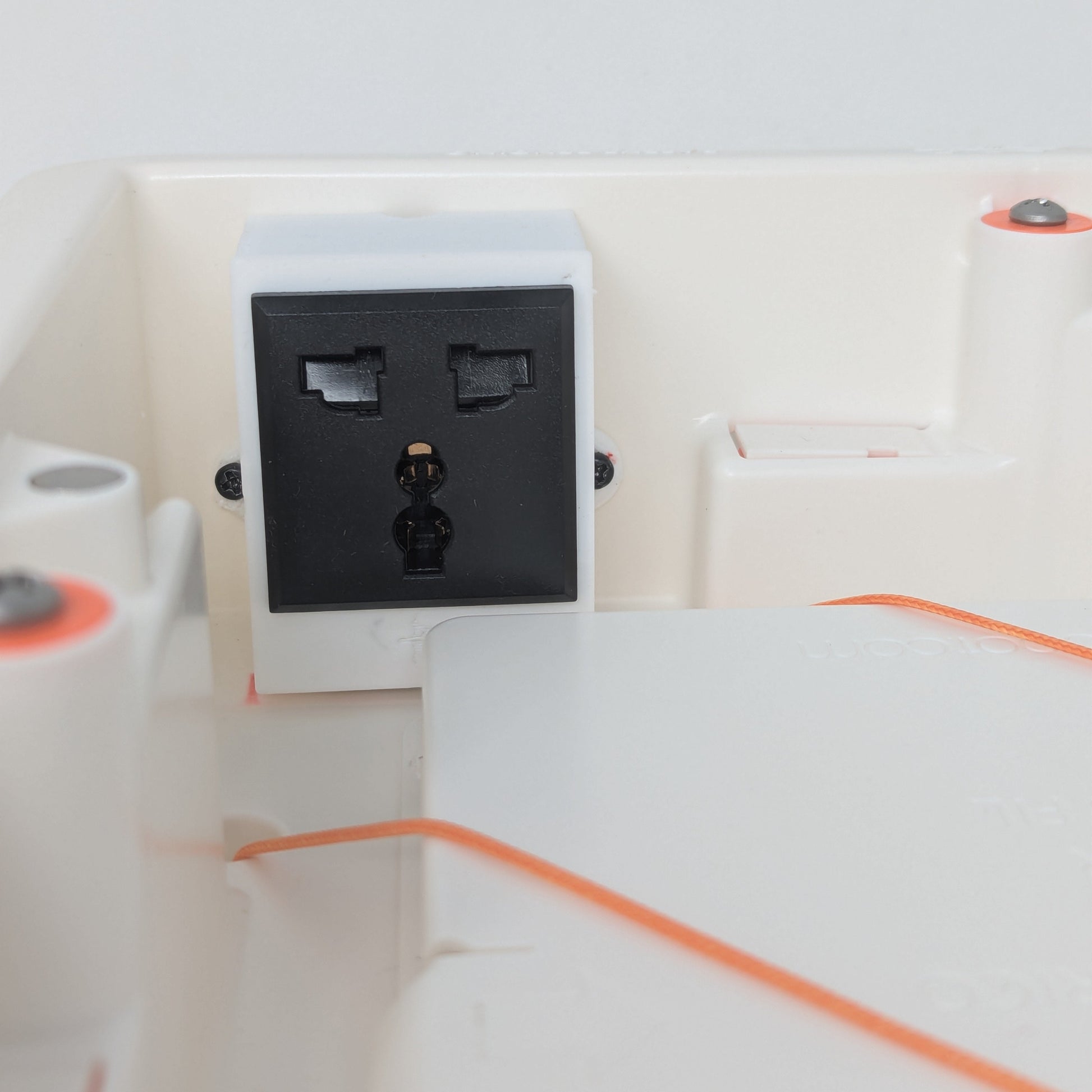

Outlet - Single Universal 100-240v outlet (for US, EU, UK, AU) (Req Hardwire)

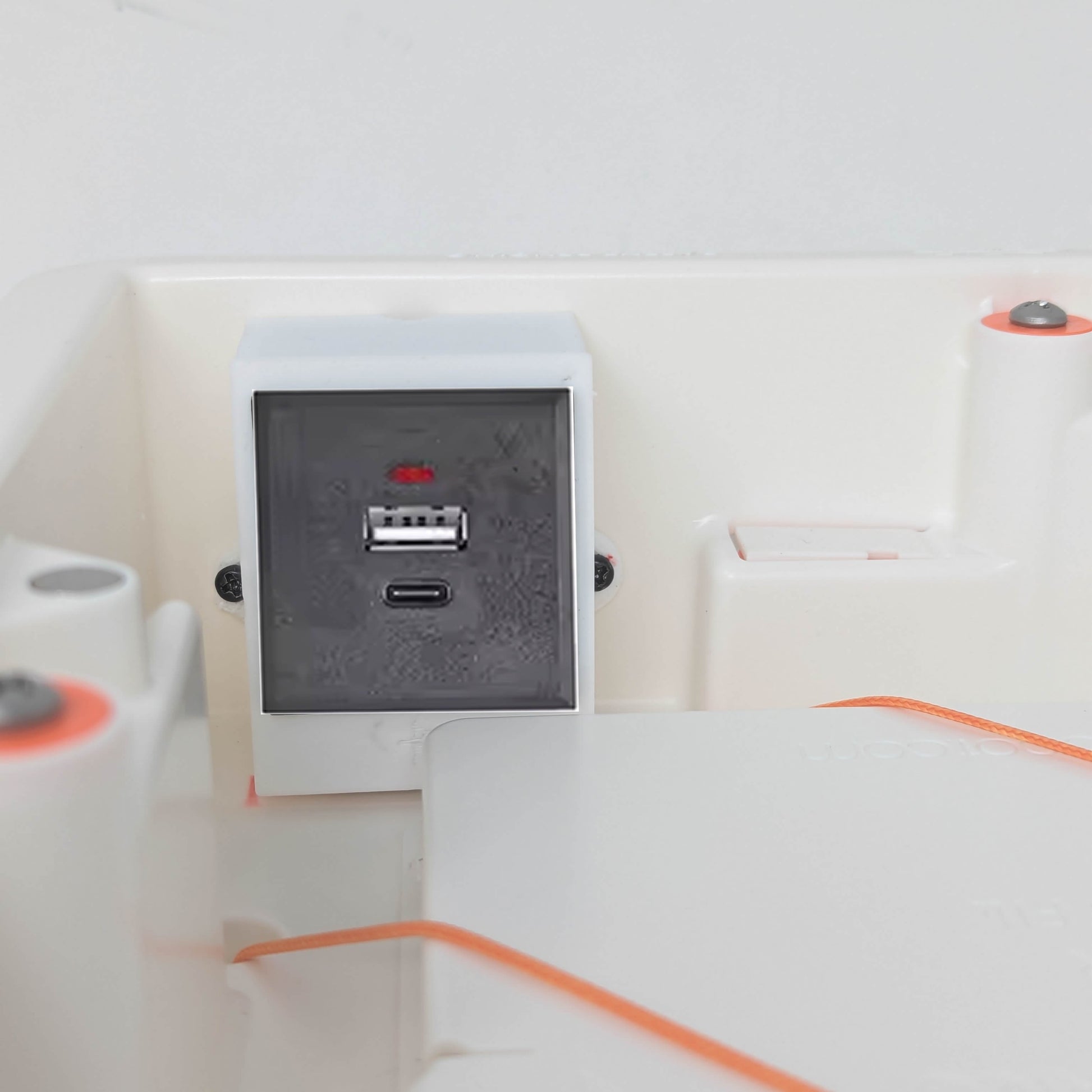

USB - USB C & USB A ports (2.1a max) (Req 100-240v Hardwire)

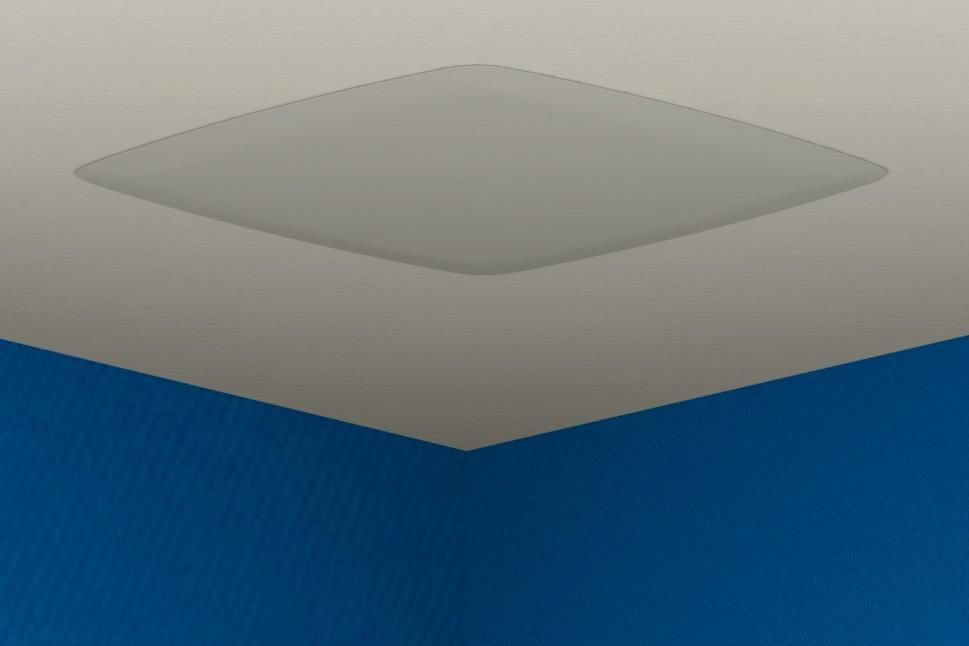

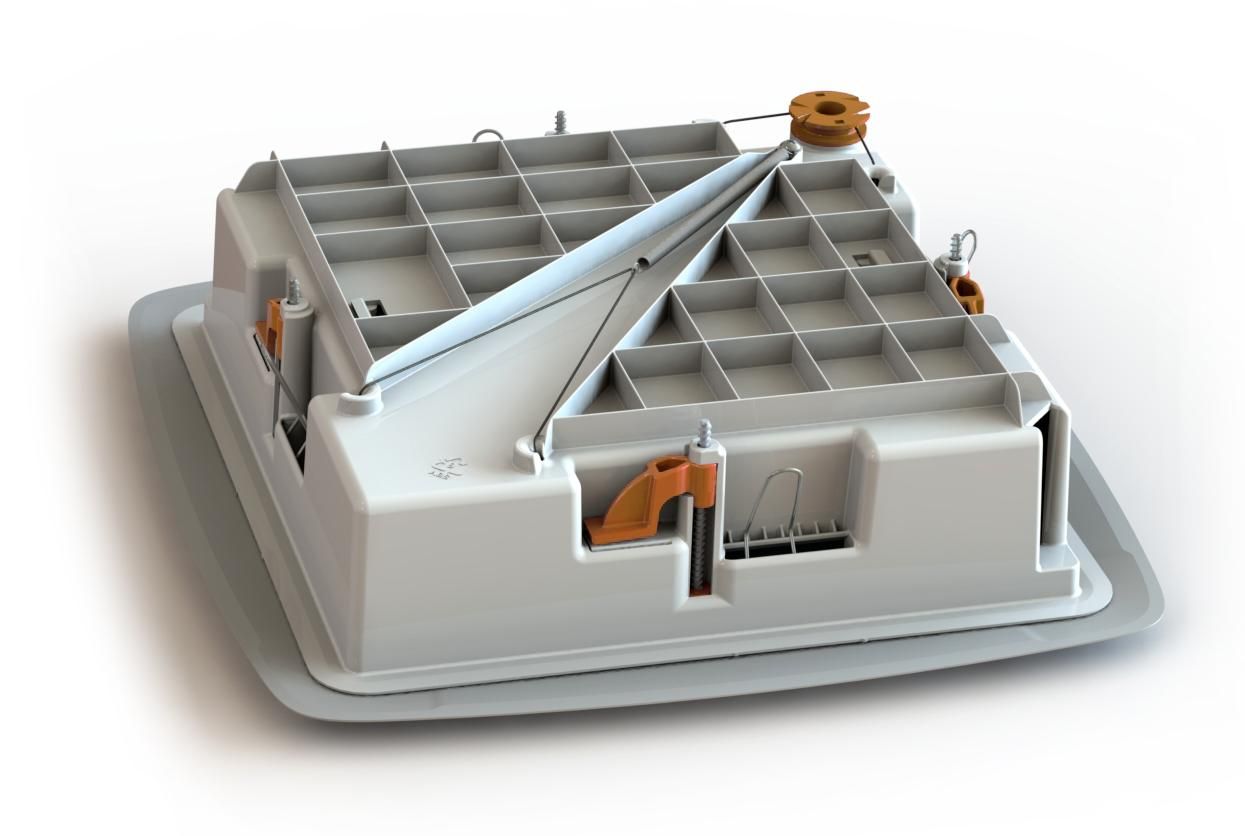

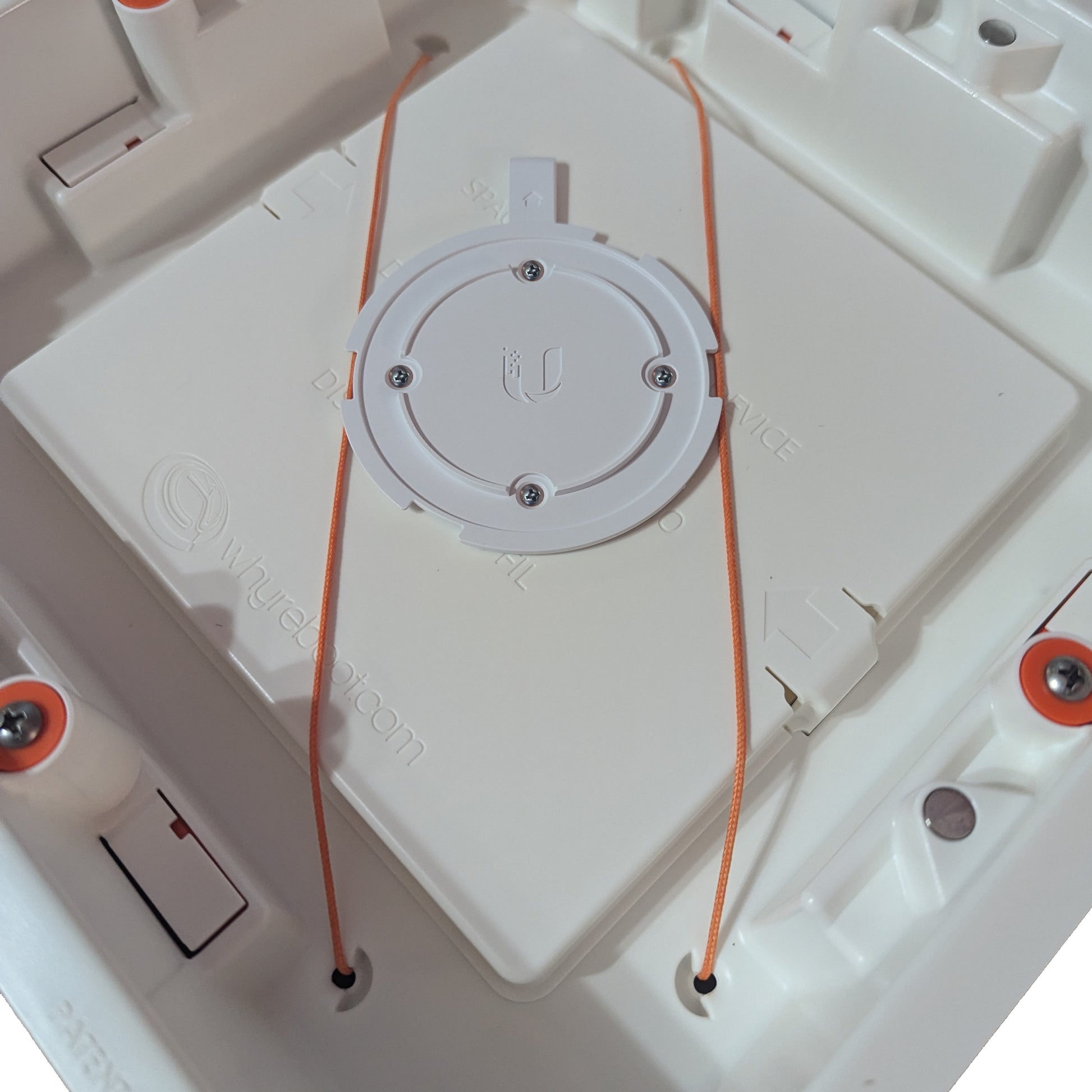

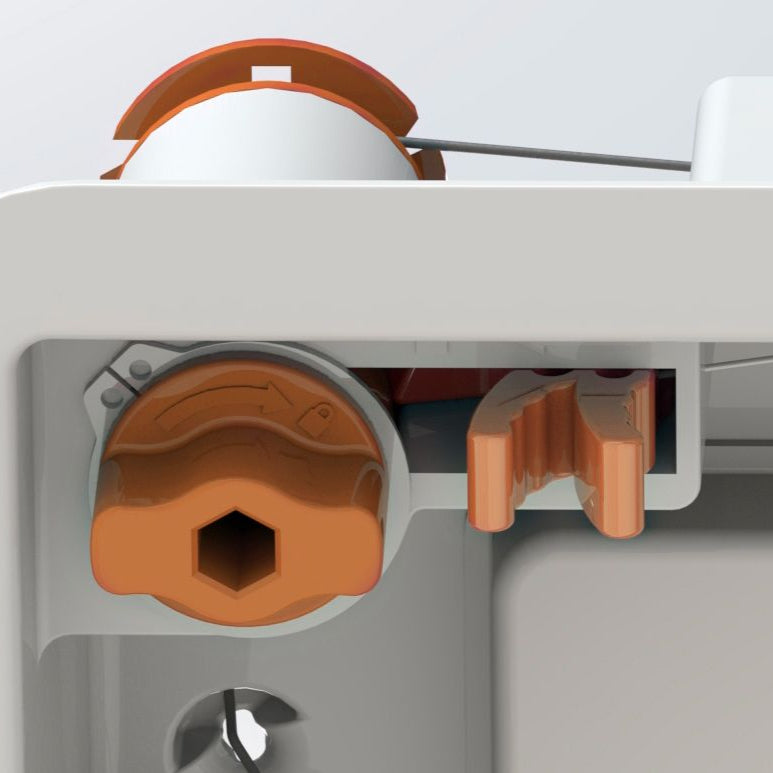

Quick Installation thanks to the unique patent-pending ratchet strap system! It adapts to hold virtually any devices, from thin to thick. Simply turn a dial to tighten, connect all power and data cables and the AP or other devices will be held solidly in place . Need a more secure mounting, you can also attach your devices mounting plate directly to the optional removable plate inside our enclosure. Either way its super simple and flexible. Paint the cover to match the ceiling and enjoy!

Devices and other mounting hardware shown is for demonstration purposes only, these parts are not included with enclosure.

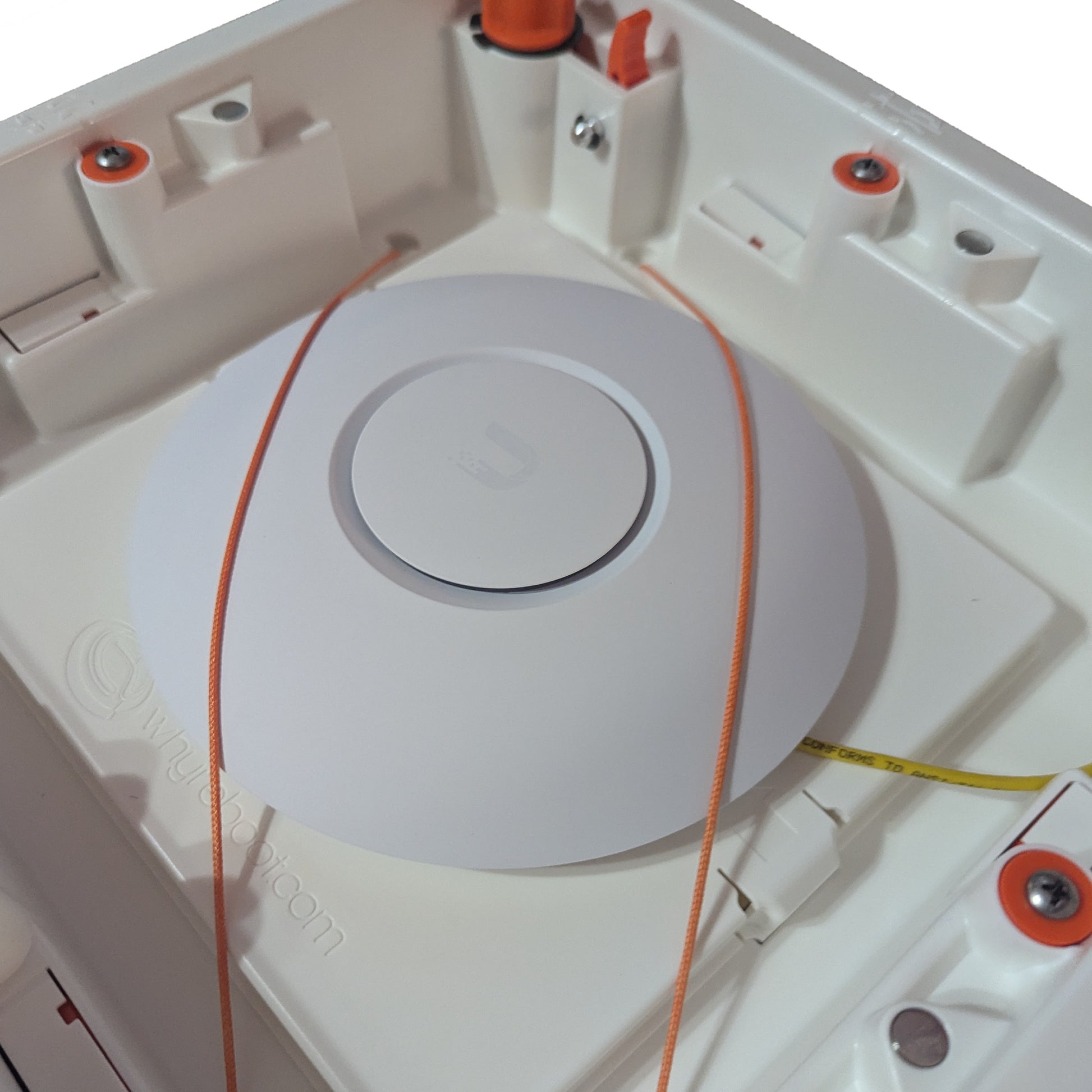

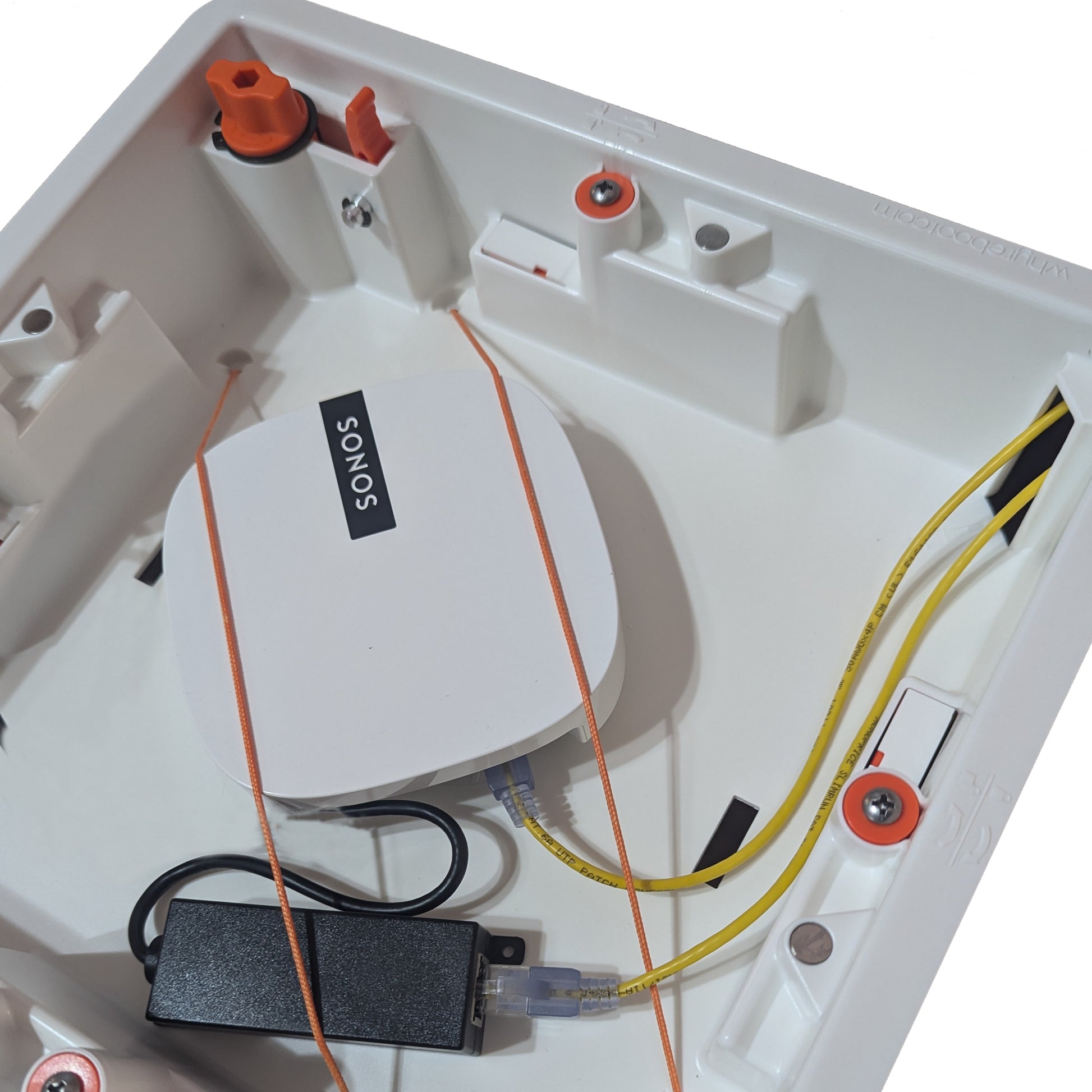

Fits most any Access Points, up to the largest APs like the Ruckus R720, and down to some of the smallest components like the Sonos Boost Extender! Compatible with device(s) having dimensions up to approximately 8-3/4" x 8-3/4" x 2-1/2"

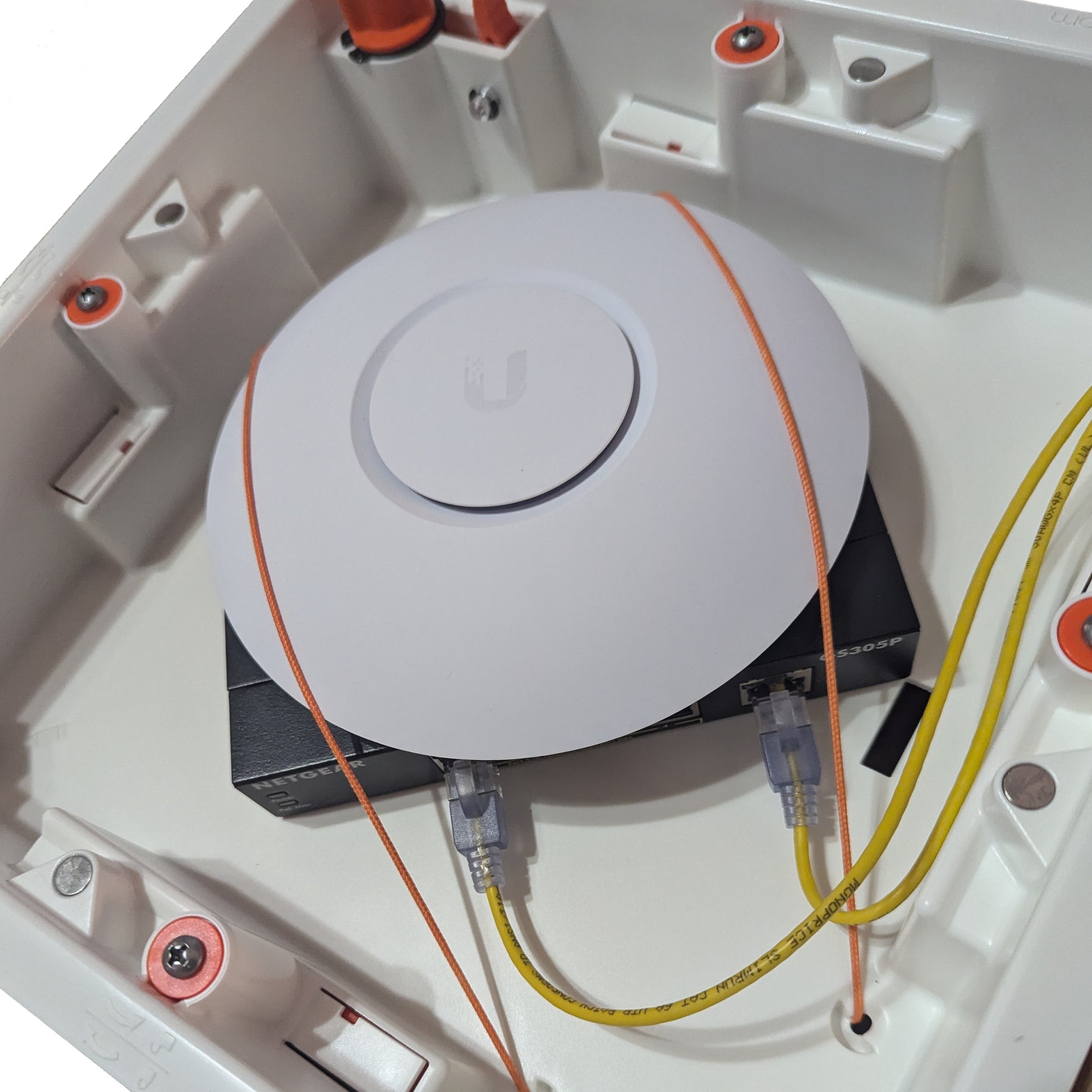

Supports multiple devices. Device mounting plates can be screwed to enclosure with proper hardware (sold separately).

A much better option than some of the dedicated wifi access point AP mounts that only work with 1 model. With the ever changing landscape of WiFi technology why would you ever want to be stuck with a non-universal mount in your ceiling??

Compared to other less flexbible, and often way more expensive options on the market from companies like Acudor, Invisa, Wiremold, Oberon, On-Q, Terrawave, Hubbell, Panduit, FS, Ventev, First Co, KARP, Morvat, etc. the choice for AP mounting is clear, the Terrapin CW1-APMT enclosure beats the competition.

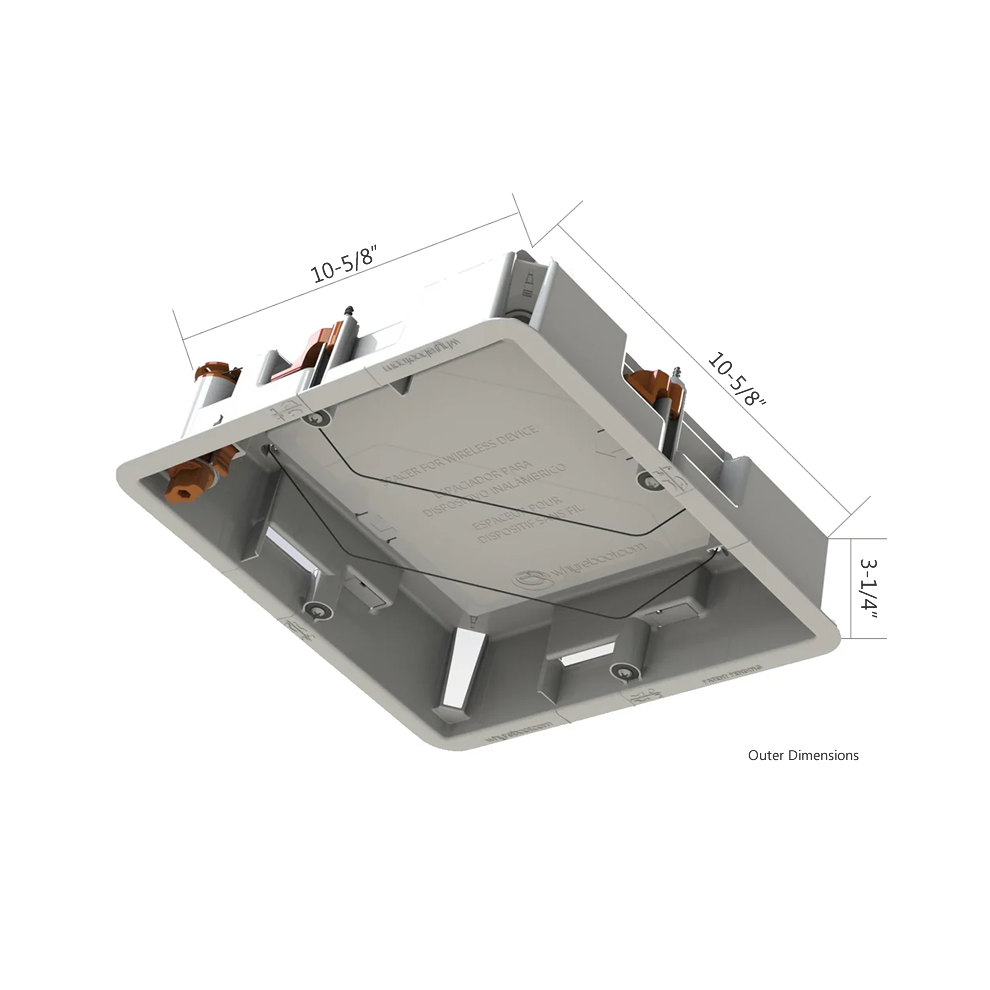

Cutout Size 10-5/8" x 10-5/8"
Cover Size 13-1/2" x 13 1/2"
Mounting Depth 3-1/4"
Interior Dimensions 8-3/4"x 8-3/4"x 2-1/2"
Removable Paintable Magnetic Cover
Ratchet String Device Mounting System built-in
Includes Optional Removable Spacer/Mount Plate

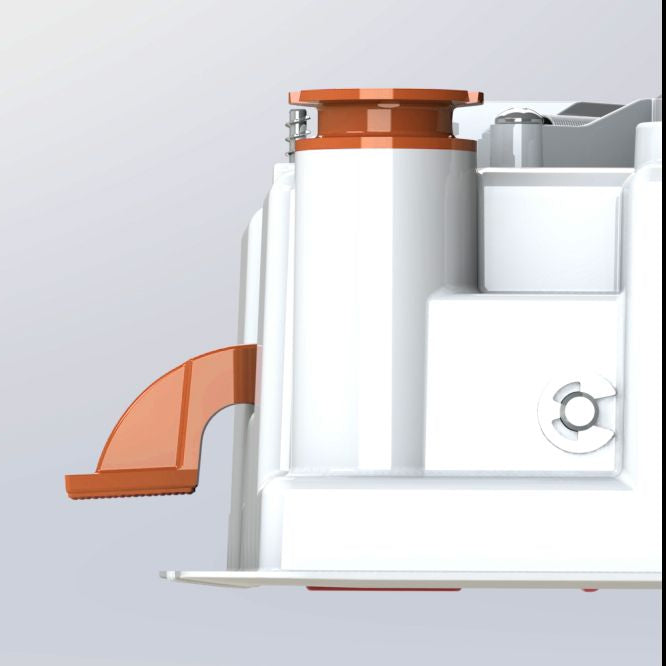

Drywall Dog Clamp (1-1/2" Max Ceiling thickness)
Low-Profile Finished Thickness: 0.1”
Color: White
ABS/Other Plastic
Screwless installation with our Dog Clamps
Power: Optional No outlet or Universal Outlet for 100-240v hardwire connection

Template and instructions included in box
