SpkrShell CW1-R | In-Ceiling Wall Enclosure for Sonos Roam Speaker

SpkrShell Architectural CW1-R In-Ceiling/Wall Enclosure for Sonos Roam

SS-CW1-R-AC-RND-W

Availability:Ships in about 2-3 Days

Sold As: Sold As Each

Options:

Grille Shape

Grille Color

Power

$249.00

The SpkrShell Architectural Series CW1-R In-Ceiling Enclosure allows you to easily integrate the smallest SONOS® speaker ROAM with a clean professionally installed look. Similar sized wireless streaming powered speakers may also work. Fits in-ceiling and in-wall, our smallest enclosure design with a depth of just over 3 inches means it fits 2x4" standard wall framing with no problem. Basically, these will work anywhere you have space in your ceiling/wall and available electrical wiring. Finish with the grille shape and color of your choice.

Thanks to the smart design elements of our enclosures with quick magnetic grilles, simple mounting, and a speaker access fingerhole you can easily transform your speaker from in-wall to on-the-go in just a few moments.

This enclosure includes your option of paintable Round or Square grilles in black or white to best match your décor. The unique design provide ventilation for your speaker, allows the speakers voice feature to still function in most installations, and is completely RF permissive for solid Wi-Fi functionality. And since the Roam speaker utilizes low-voltage for power, this enclosure has a high-quality transformer built-in to convert your homes 100-250v power, or optionally your Network PoE power, to clean constant proper 5-Volt power to keep your wireless speaker ready and charged while in our enclosure.

Note: that you must select either PoE or AC as your power source, this product is not equipped with both options at the same time. PoE provides power only, no data is sent to the speaker.

*Speaker shown for example only, speaker not included with enclosure.

This enclosure is designed to fit the following products:

Sonos Roam
Sonos Roam 2

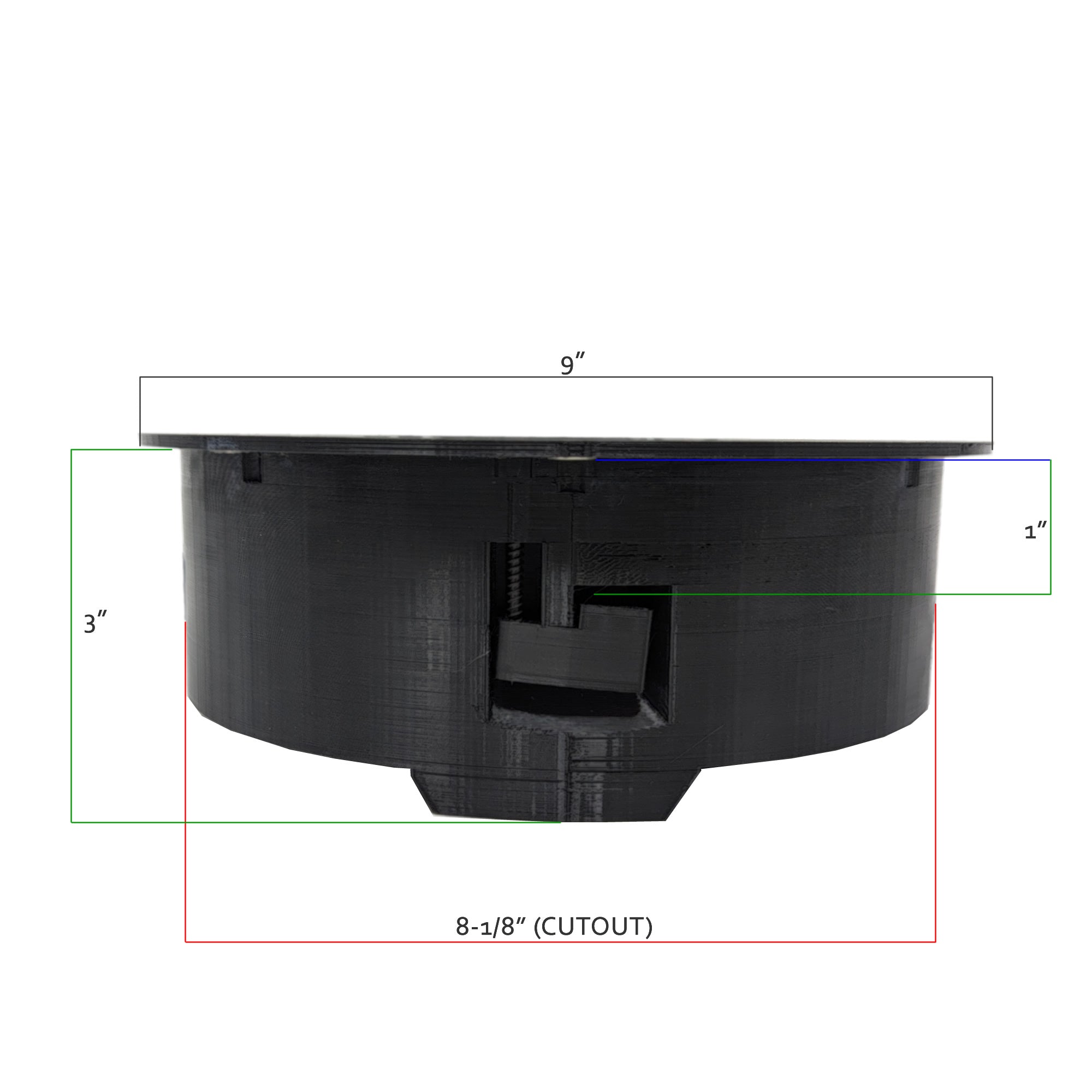

Enclosure Dimension: 9" Width x 3-1/8" Depth
Grille Dimensions: 9.26" (Round or Square)
Cut-Out Dimensions: 8.1" (template included)
Mounting Depth: 3"
Installation Type: Retrofit Ceiling or Wall, Dog Clamps
Weight: 3 pounds
Color: White/Grey (White Grille)
Power - AC Version - Input Power: 100-250 VAC (upto 2x NM 14-2awg)
Power - POE Version - Input PoE or higher
Output power: 5V 2.4A (12w)
Speaker Power Connector: USB C (power only)
Power Transformer Built-in: High-quality Industrial transformer, TUV IEC UL compliant
Material: Various Plastics (Grill is steel)

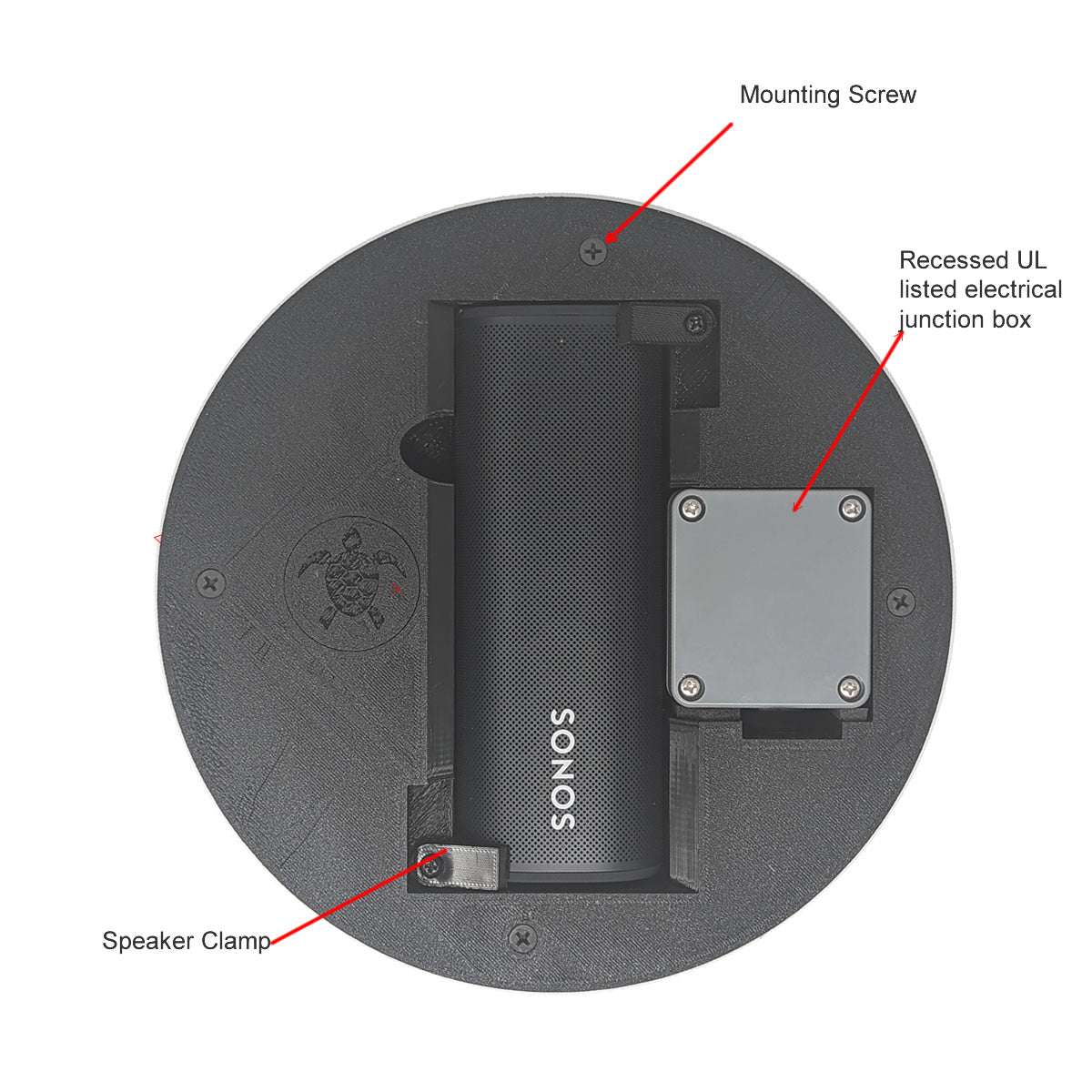

Enclosure Rating: UL listed electrical junction box, In-Wall / IC in-contact compliant
Installation Type: Tension Dog Clamps for clamping to drywall or similar surfaces with thickness up to 1" (7/8" max recommended)

IMPORTANT

Electrical knowledge needed to install. If you are not sure how to do this please contact a licensed professional for installation. Electrical collar and Junction box are plastic. Wiring should be GFCI or better protected when installed in damp locations.

Temperature and UV Exposure Enclosure is not UV rated; ambient temperature should not exceed 150' F, avoid direct exposure to sun light or radiant heat sources. Do not exceed the recommended operating temperature of your installed speaker, see speaker documentation for details.

Moisture-Resistant (not waterproof) rating applies when installed out of direct weather and water spray, mounted in-ceiling, in a rated ceiling material with junction box and grille properly installed, when used with the Sonos Roam which water and humidity resistant.

In-Wall Use is possible, provided the wall depth is at least 3" from the finished surface to the back of the cavity. This product should fit most standard 2x4" or deeper finished walls.

Retrofit Install Ready enclosure is designed for retro-fit installation, simply cut hole, attach electrical connection, and secure mounting dogs.

New Construction Installs Pre-drywall? Purchase one our PCRB Rough-In Brackets separately for an easier installation later.

Drop Ceiling install is simple with our universal Drop-Ceiling Support Bracket, sold separately.

INSTALL GUIDE (PDF)

AUDIO TUNING GUIDE (PDF)

Warranty Statement (PDF)
