AmpShell™ | Universal Outdoor Enclosure For Sonos AMP & More

AmpShell Outdoor Universal Equipment Enclosure for Sonos AMP & More

AS-F0-P1-NA-GRY

Availability:Ships in about 7-10 Days

Sold As: Sold As Each

Options:

Fans

Power Outlets

Power Cord

$389.00

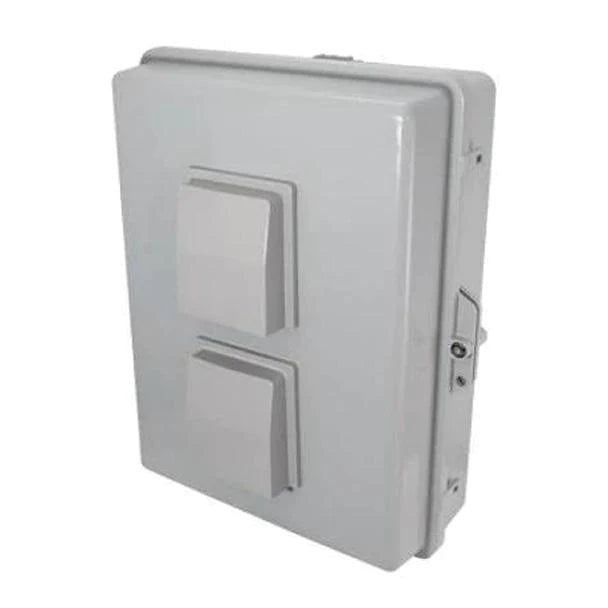

Our original AmpShell is a premium medium universal outdoor enclosure made for any electronics, ready to plug and play. Designed for the likes of one Sonos Amp or similar, but if you want to protect virtually anything from the elements this enclosure can do it. Besides the unique ultra-versatile mounting plate, it also boasts UV, impact & weather resistant housing that meets or exceeds NEMA 3R / IP54 ratings for weather toughness.

You get multiple customization options with our latest version

Two 3" shrouded vent openings with fine debris filters are ready built for installing up to 2 optional fans. Plus every enclosure ships with included fan wiring and thermostat, even the 'No Fan' option, so you can always add-on the fans later if you want!

AmpShells fans, filters, wiring, straps, and thermostats are easily user replaceable if there is ever a problem, just grab them from our shop.

Equipped with premium fans, the Dual-Ball bearings design offers safe multi-orientation installation, 67K hours run rating, robust aluminum housing, and low load thermoplastic blades, high-quality 2-pin power connectors, all this means you get the absolute longest life possible at the easiest possible maintenance level.

Select either 1 Power Outlet w/ 1 USB (A&C), or just 2 Power Outlets. Outlets are universal and support 100-240v. Power Cord options include NA (North America), UK (United Kingdom), or a EU (European Union) simply choose the one that matches your region.

The AmpShell designed to be low-profile so it blends in with most any structure or landscape. You can surface mount it in a shady spot on any structure, or pole mount (sold separately). It's easy to customize and wire with extra grommets and wire glands included. Quickly and easily secure with the keyed lock, or add your own padlock.

Need a larger enclosure? Our new AmpShell XL can hold 2 Sonos Amps!

*AV Devices shown for example only, device is not included.

Works with the following gear, and most other similar sized equipment:

AUDIO

Arcam Solo Uno
Arylic A30+ & A50+ Amp
Arylic B and S series Pre-Amps
Arylic B50 & B50 SE Amp
Arylic H50 Amp
Arylic SA100 Amp
Atlona AT-GAIN-60 Amp
BlueSound Powernode 2i (2019)
Bose MU Amp
Denon HEOS Amp†
Denon Home Amp (2024)
Denon HEOS Link Pre-Amp
Episode DYN-2D-200 Amp
Episode Lynk Audio Pre-Amp
Episode Mini-2D-35 Amp
Episode Mini-3D-35 Amp
Episode Mini-5.1D-200 Mini AVR
Episode Mini-Sub-1D-100 Sub Amp
Episode MOIP 6D-50 & 3D-50 Audio Amp
Marantz M1 (Heos) Amp
NAD CS1 Pre-Amp
NAD D 3020 V2 Amp
NAD D 3045 Amp
OSD Nero SRT1 Gen2 Pre-Amp
OSD Nero Stream Outdoor Amp
OSD SMP-100 Sub Amp
OSD SMP-200 Sub Amp
Russound AVA2.1 Mini AVR
Russound AVA3.1 Mini AVR
Russound MBX-AMP
Russound MBX-PRE Pre-Amp
Russound TVA2.1 Amp
Sonos Amp
Sonos Port Pre-Amp
SVS Prime Pro SoundBase Amp
Triad SA1 Amp
Triad SA1-200 Amp
Triad TS-PAMP1-200 Amp
UNIFI UPL-AMP-B Amp
VSSL A.1x Amp
WiiM Amp
Wiim Ultra Pre-Amp
Wiim Amp Pro
WiiM Pro Plus Pre-Amp
WiiM Pro Pre-Amp
WiiM Mini
Wiim Vibelink Amp
Yamaha WXA-50 Amp
Yamaha WXC-50 Pre-Amp

Media Players/Cableboxes

Most ISP Remote/Client Cable boxes
Amazon FireTV Cube Streaming Media Player
Apple TV Streaming Media Player
AtmosphereTV Media Player
DirecTV Gemini Cablebox
DirecTV Genie (HR44/54) Cablebox
DirecTV Genie Lite (H44) Cablebox
DirecTV Genie Mini (C61K) Cablebox
DirecTV HD (H25) Cablebox
Dish Joey and 4k Joey Cablebox
Dish Wally HD Cablebox
NVIDIA Shield Streaming Media Player
Rockbot TV Media Player
Roku Ultra/4K Streaming Media Player
TiVo EDGE Media Player
TiVo MINI LUX Media Player
Verizon Stream TV Media Player
Verizon TV One Mini Cablebox
Xfinity Flex Xi6-t TV Media Player
Xfinity XG1v4 Cablebox
Xfinity Xi6 cablebox
Xfinity XiOne cablebox
XUMO Stream Box Media Player

Network/Other

Alarm.com / Point Central Z-Wave Hub
Araknis AN-210-SW-C-8P & 5P Network Switch
Araknis most 5 and 8 port network switches
Asus / Intel NUC Pro 10, 11, 12, 13 Mini PC
Cisco 6300 Series Embedded Services Access Points (ESW6300)
Cisco Business 100/200 Series Access Point
Cisco Catalyst 9 Series of Access Points (ex. 9120, 9115, 9130)
Cisco CW9162, CW9164, CW9166D1, CW9166 Access Points
Cisco Meraki MR28, MR36, MR36H, MR44, MR46, MR56, MR57 Access Points
Cradle Point L950 LTE Adapter
Eero Access Points
Packedge MS-1212 Network Switch
Ring Security Base Station (Gen2)
TP Link Deco Mesh BE5000 Wifi 7 AP BE25
TP Link most Omada Access Points
TP Link most Omada Network Switches up to 10 ports
TP Link Omada 4G Router ER706W-4G
TP-Link AC1350
Ubiquiti UA-HUB (Access Hub)
Ubiquiti UA-Ultra (Access Ultra)
Ubiquity most network Access Points powered by PoE
Ubiquity most network switches powered by PoE
YoLink Hub

†Device may not fit in enclosures with Dual Fans

*Be sure to review product dimension against our dimensions picture to compare for fit before purchasing. This list is not exhaustive and products listed may not fit with your specific use case or accessories. Note that manufacture supplied data could also be inaccurate, or could change with revisions over time.

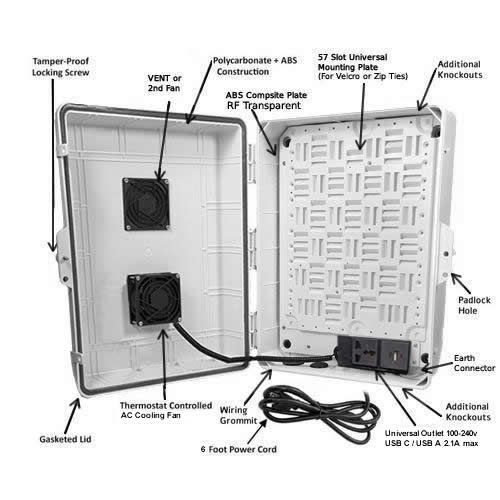

VENTILATION: Dual 3" Filtered Vents, with wiring, t-stat, and mounting for 1 or 2 optional cooling fans.
Air Flow - 1 Fan moves approximately 22 CFM - Noise: 32 dBA.
FANS: 3" AC Fans either 110v or 240v (depending on cord selection. Fans are Optional. Aluminum Chasis High-Speed UL-certified fan with dual-ball bearings has a lifespan of 67,000 hours (Fan Voltage varies by selected power option)
THERMOSTAT: user replaceable t-stat turns on fans at about 89-100°F (35-40°C) and turns off fans when it drops below approximately 70-80°F (26°C)
MATERIAL: ABS + Poly-carbonate blend with a gloss finish*

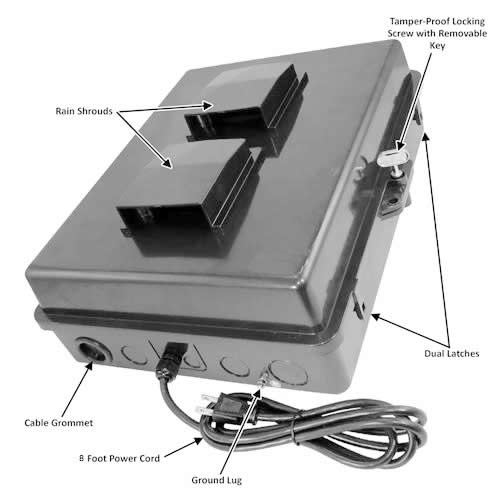

DOOR: Gasketed Lid with Tamper-Proof Locking Screws and dual latches
MOUNTING PLATE: 57 slot composite equipment mounting plate with hook n’ loop pull-tight straps. (Removable)
BACK PLATE - ABS .006" Thick (Removable)
POWER OUTLET/PLUG - 1x Universal International US, EU, UK AU (100-240v) 10A (1250w)
USB: 1x USB-C & USB A Outlet (max 2.1A)
POWER CORD: SJ Outdoor Rated 5' (plug type optional)
WEATHER RATING: NEMA Type 3R / IP54 Rated
FLAME RATING: Meets UL94-V0 Flame Rating
HARDWARE: Wall Mount Hardware, mounting template, & Cable Grommets

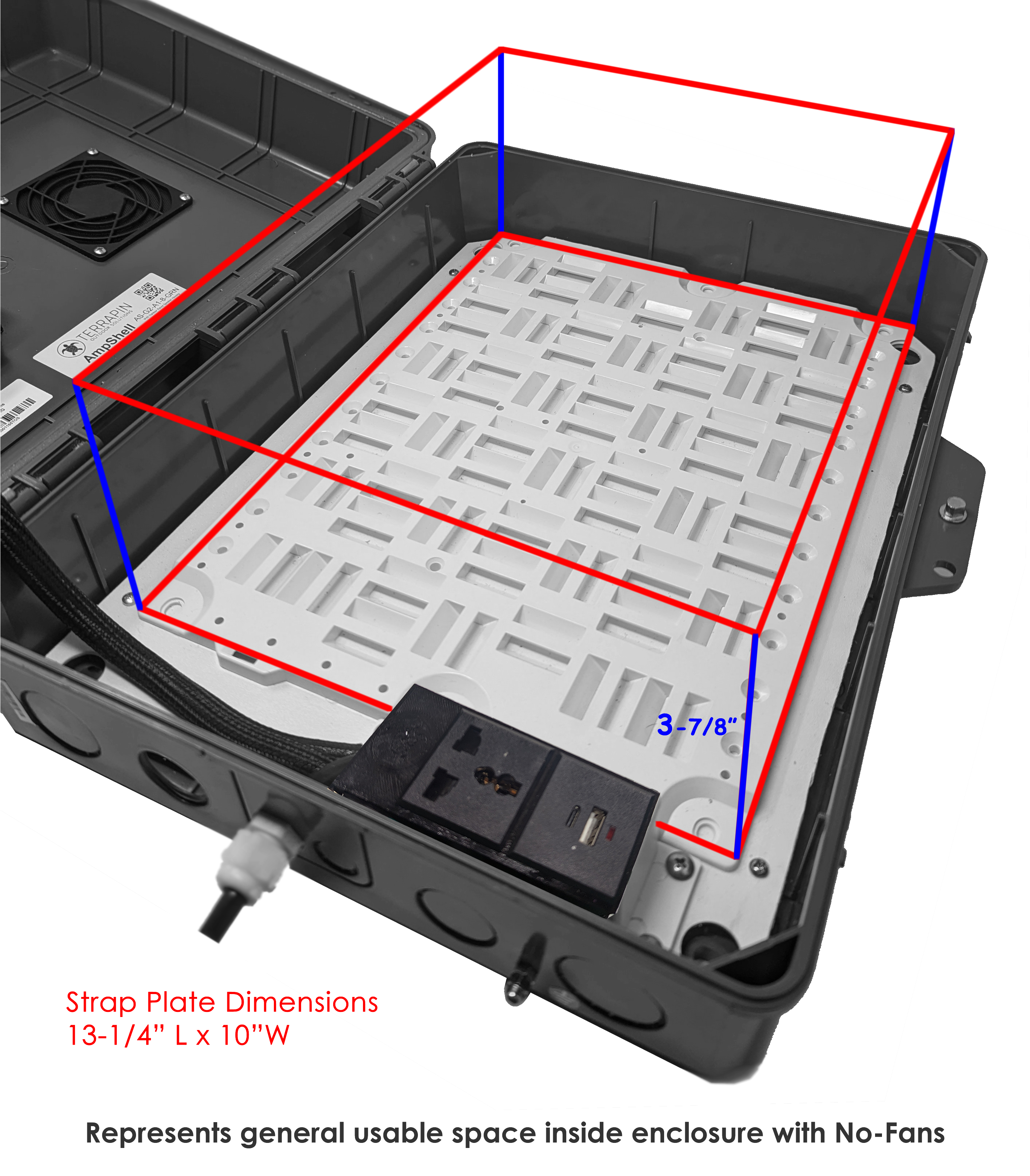

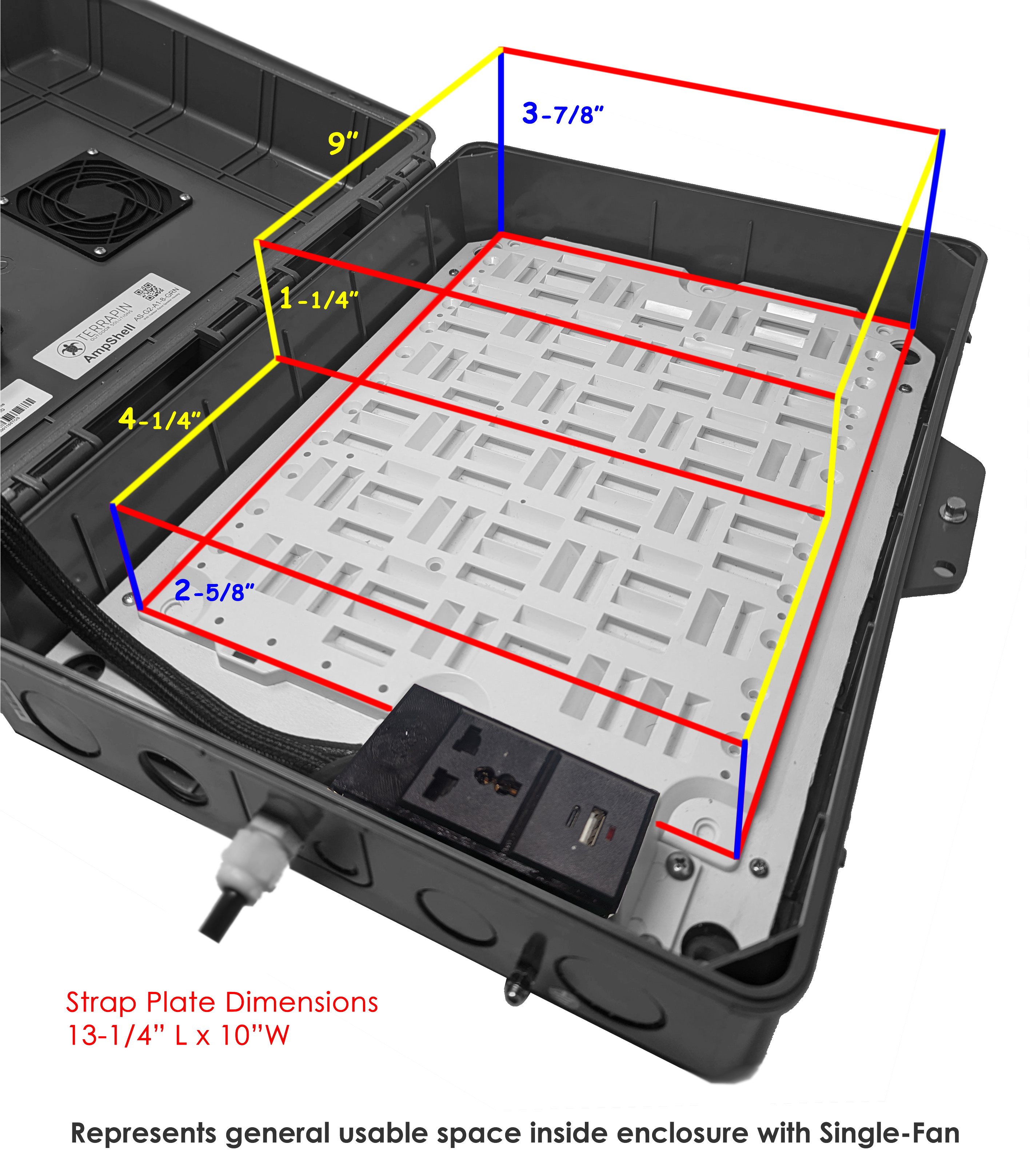

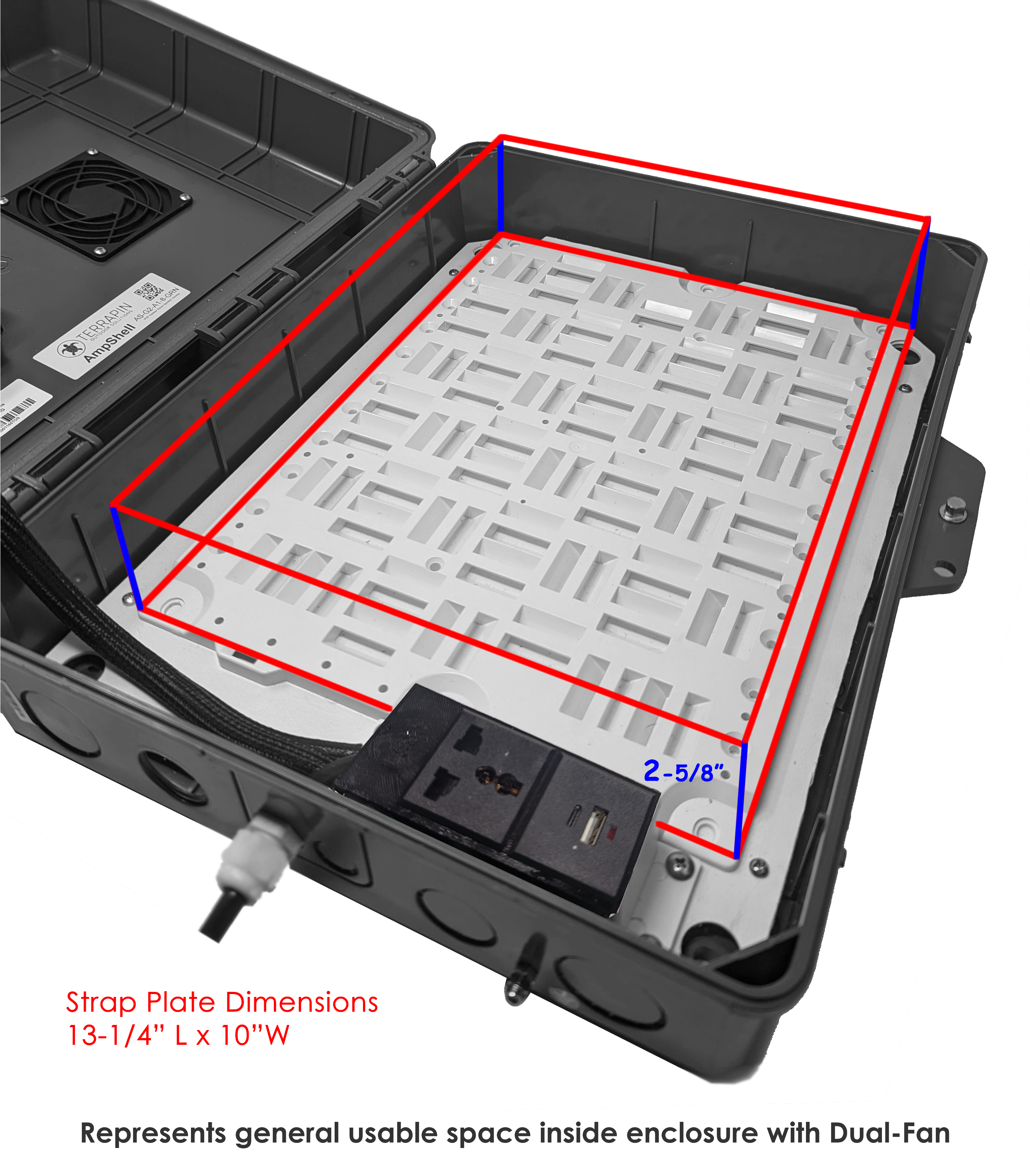

DIMENSIONS: 16.5 x 12.5 x 5.3 Inches
WEIGHT: enclosure only approximately 8 lbs.
WEIGHT LIMIT: ~8 lbs for internal devices
WIRELESS TRANSPARENT: Yes,on all sides

NOTICE: Safe storage and operating temps vary by your specific device, refer to your user manual min/max safe ambient operating/storage temperatures.*

* We recommend this unit be connected to a GFCI or similarly protected outlet to insure total protection against electrical shock.

We recommend not operating your device when the ambient air temp is within 5° of the safe max operating temp of your device, or higher.

Note that due to the blend of materials, finish, and the manufacturing process, outer shell may show some slight marks, this effect maybe more noticeable with certain colors or in certain lighting conditions, and is random. this is normal and not considered a defect in general.
