Universal Speaker Acoustic & Protective Back Covers - 1 Hour Fire-Rated
Universal Speaker Acoustic & Protective Back Covers - 1 Hour Fire-Rated

Universal Speaker Acoustic & Protective Back Covers - 1 Hour Fire-Rated
T-CBAFF-109300-L
Availability:Ships in about 3-5 Days
Sold As: Sold As Each | $AVE with a 6-Pack!
Options:
$74.00
$74.00 $0.00
Overview

You won't find a better, simpler to install, and quality acoustic dampening cover. This product helps you better meet both those noise and fire-safety requirements for virtually any ceiling device or fixture. So long as your device fits within the dimensions of the cover as specified and rated, you should be good to go. It is unique in that it can be installed retrofit, and requires no attachments or sealants to be used in most applications.

These covers comply with or exceed BSI BS EN ISO 140-3 / BS 2750-3 acoustic standards for acoustic control. And with the increasing number of cities imposing tighter restrictions on fire-ratings these are UL Classified and Intertek/ETL certified (ASTM E119) 1 hour fire-rated. This unique intumescent material expands 5 times of its original thickness, closing the vent holes and preventing flame spread. For use in most floor/ceiling assemblies.

These work with lights, speakers, and other common ceiling penetrations or any device you want to control the sound transfer of. Always refer to your local authority before purchasing to insure compliance, specifically for fireproofing.
Compatibility

Works with most devices or fixtures that are smaller than the max inside usable dimension of the cover.
Features & Specs
  • 60 minute fire protection
  • Acoustic Dampening
  • For retrofit and new construction
  • Lightweight (approx. 1.5 lbs)
  • Easy Installation – can be fitted in seconds – no screws, drilling or additional sealant required
  • Flexible material enables cover to be fitted around obstructions or retro-fitted
  • For ceiling cut-outs less than the max width of cover
  • Can be used with most any device that fits within.
  • In a fire, the intumescent material expands 5 times of its original thickness, closing the vent holes and preventing flame spread
  • For use in floor/ceiling assemblies
  • Maintenance free

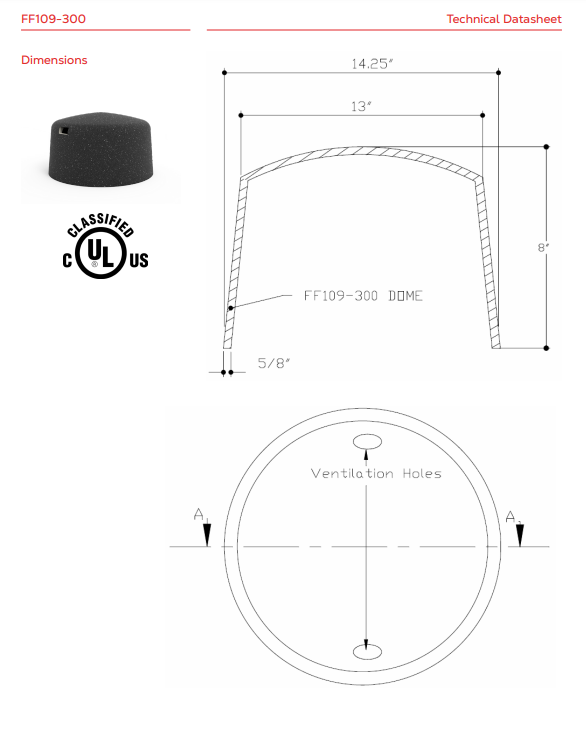

LARGE DIMENSIONS:
Outside height: 8"
Outside Width: 14-1/4"
Max Inside Diameter 13"
Wall thickness: 5/8"

X-LARGE DIMENSIONS:
Outside height: 11"
Outside Width: 17"
Max Inside Diameter 15"
Wall thickness: 5/8"
