TQ-LOC-M | Outdoor Rated Direct Burial Low Voltage Wire Connector

Direct-Burial Quick-Lock Wire Connector

TQ-LOC-M

Availability:Ships in about 1-2 Days

Sold As: Sold As Each

Options:

Package Type

$1.47

$1.47 $0.00

If you need an affordable and quality Low-Voltage Direct Burial wire connector, you'll love the Terrapin TQ-LOC-M wire connectors. Designed to feel like a wire nut, but out perform it and be easier to install. Easily split runs to multiple landscaping elements or to T-junction any existing lines. Faster install, strong connection, easily serviceable, faster troubleshooting, direct burial approved!

TQ-LOC-M lets you quickly clamp and secure wire leads for a strong connection - these connections resist pulling and wire creep, and can be easily released for service later if needed. The deep wire protection recess is pre-filled with special dielectric grease to ensure a waterproof connection for non-submersible applications. UL Listed for direct burial use. Buy in bulk to Save, easily store in a cool dry place till ready for use.

Each connector can lock to another connector too help keep your connections together, all neat and tidy.

*IMPORTANT This item is non-returnable if silicone filling has been disturbed.

Made to fit most DB (Direct Burial) and Non-DB Rated stranded wiring from #12-#20 AWG. Fit may vary based thickness of wires jacket, and whether its a solid or stranded wire.

Extremely strong mechanical connection twist locks onto the cable jacket.
Can also be used to make splices or T-Junctions along a wire run.
Connector Rating - cULus | Direct-Burial (non-submerged)
For Lighting 30v (AC or DC) | 70.7v for audio applications | 25A Max Rated
Supports Solid, Standard, & Fine Stranded Wires
Support wire size from #12-#20 awg
Sold as Each - note that a separate connector is needed for each conductor splice (in case of a speaker or light, you need one for + (positive) and another one for - (negative))

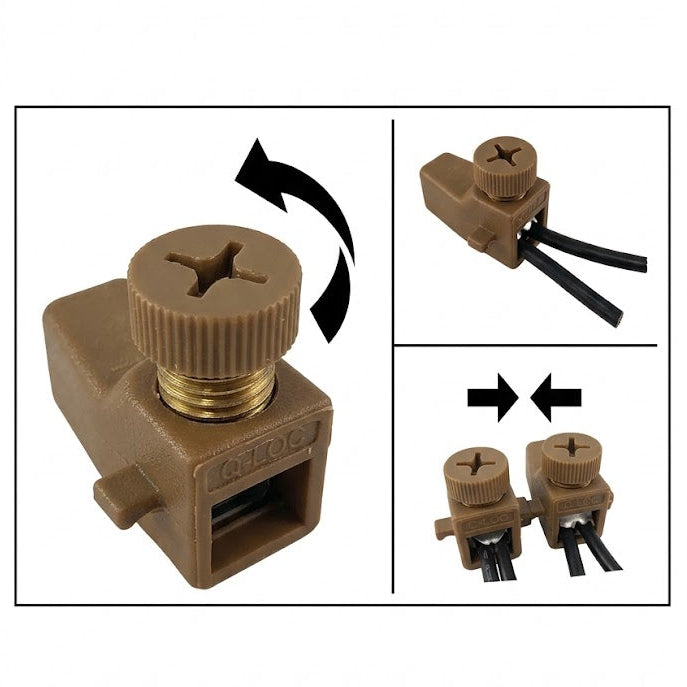

Simple operation - twist stripped wires, insert wires fully, twist clamp to lockinto place.
Professional quality - replace unreliable wire nuts.

Dimensions (each unit when closed)
Approximately 1.5"x 0.65"x 0.93"

*For most effective wire protection, the jacket of the wiring where cut should also be inside the enclosure, or separately treated/sealed to prevent ingress of water between conductors and jacket.
