Universal In-Ceiling 1-Hour Fire-Rated Acoustic-Rated Large Back Cover

Universal In-Ceiling 1-Hour Fire-Rated & Acoustic Certified Large Back Cover

T-CBAFF-FAC-L

Availability:Ships in about 3-5 Days

Sold As: Sold As Each | $AVE with a 6-Pack!

Options:

$119.00

The Fire & Noise Barrier for in-ceiling loudspeakers, the T-FRSC-L is certified to provide and maintain both a 1-Hour Fire Barrier and up to a 20db Reduction in sound transmission, with an average of 11.5db of reduction overall. Designed for ceiling cut-outs less than about 11" in diameter and devices less than about 7" in height.

With the increasing number of cities imposing tighter restrictions on fire-ratings, it is limiting materials and devices allowed to be installed in some buildings. The FF109-FRSC is a Large 1-Hour fire-rated acoustic dampening back cover, that is Intertek/ETL certified (ASTM E119). And is certified be Sound Research Labs (SRL) as an affective sound barrier material, meeting or exceeding BSI BS EN ISO 140-3 / BS 2750-3 acoustic standards.

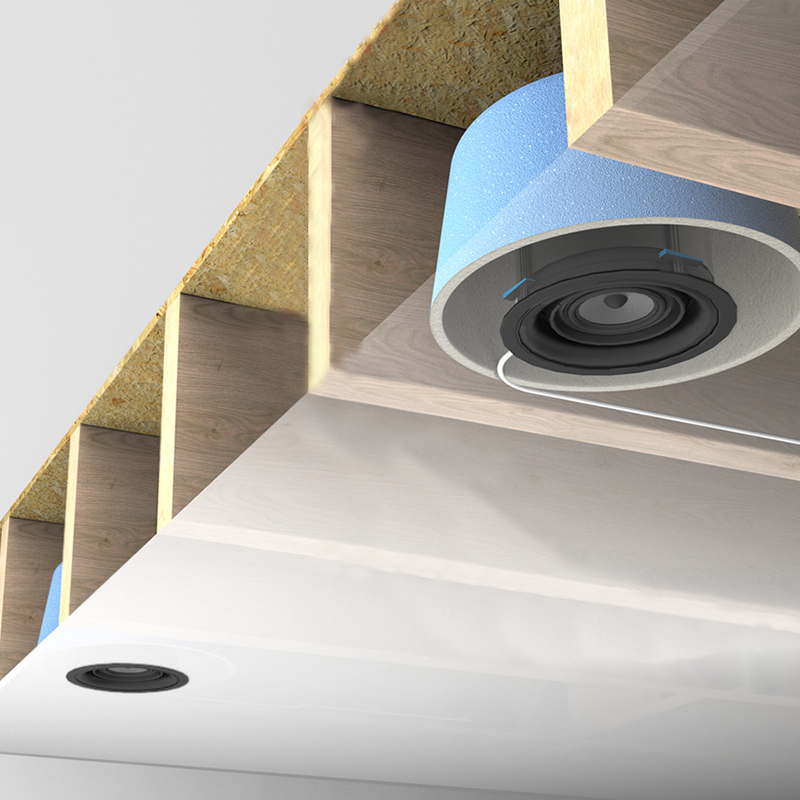

This product helps you better meet or exceed the ever changing fire safety requirements when installing our products in ceilings or floors, with easy Retrofit installation capability. The 1 hour fire-rated dome encapsulates your in-ceiling speaker, light, or other enclosure. Perfect for most any ceiling penetrations where certified acoustic control and fire protection are desired. It requires NO additional attachments or sealants.

If you are looking for an alternative size and do not need the acoustical certified rating, checkout our other back covers

Works with any in-ceiling/floor application with any speaker or similar enclosure up to approximately 10-5/8" in width.

60 minute fire protection
Enhances the acoustic protection of the ceiling
Reduces noise through floors
For retrofit and new construction
Lightweight (approx. 1.5 lbs)
Easy Installation – can be fitted in seconds – no screws, drilling or additional sealant required

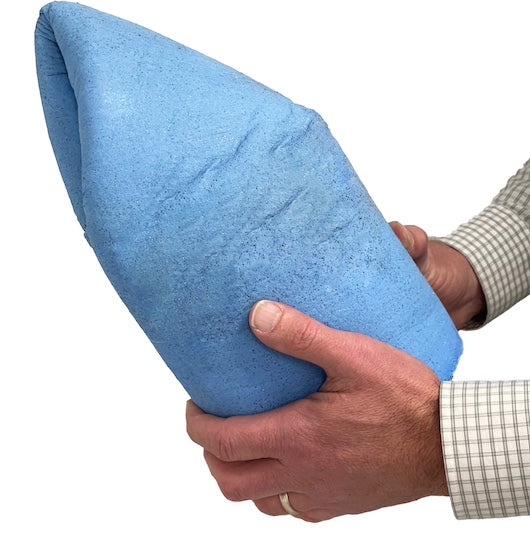

Flexible material enables cover to be fitted around obstructions or retro-fitted
For ceiling cut-outs of up to 10-5/8″
Can be used with any speaker manufacturer
Suitable for a wide range of in-ceiling loudspeakers and enclosures

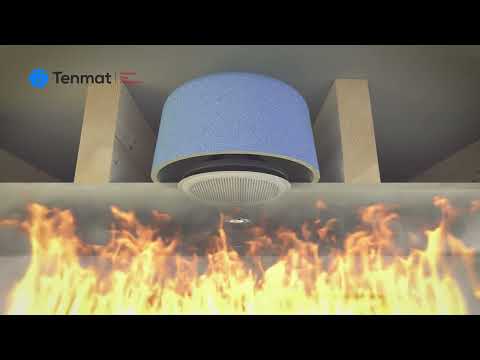

In a fire, the intumescent material expands 5 times of its original thickness, closing the vent holes and preventing flame spread
For use in floor/ceiling assemblies
Maintenance free

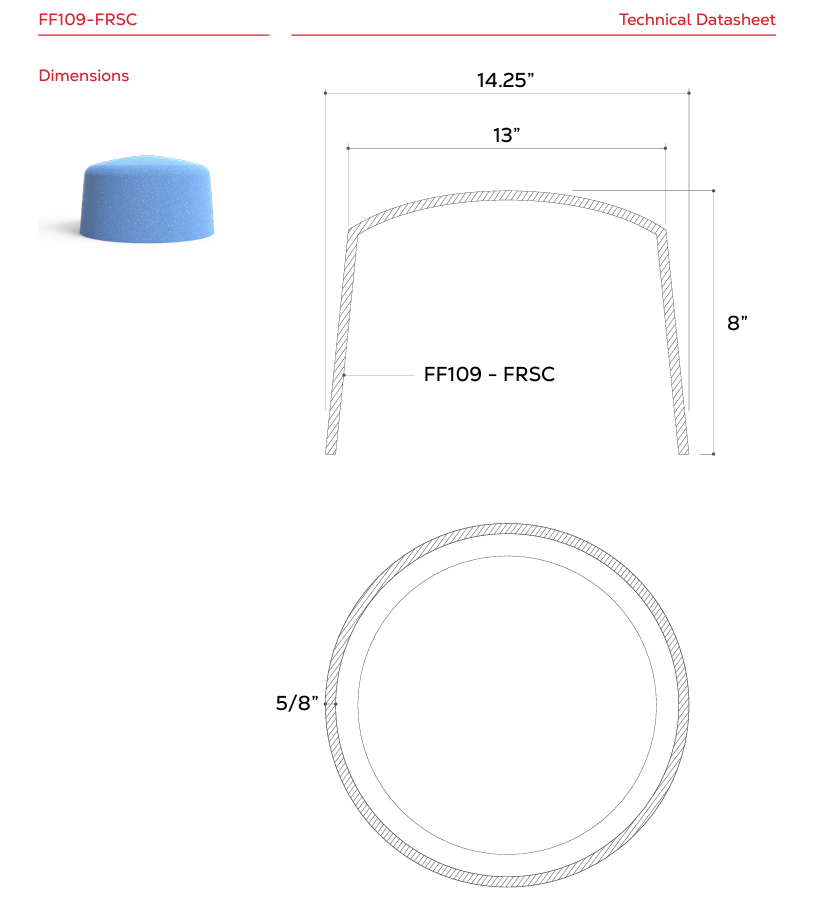

Outside height: 8"
Outside Width: 14.25"
Max Inside Diameter 13"
Wall thickness: 5/8"
