ConnectShell Pro Direct-Burial Outdoor Speaker Wire Connectors
ConnectShell Pro Direct-Burial Outdoor Speaker Wire Connectors
SKU:CS-MICRO-PRO-3WAY-2PK
LEAD TIME: Ships in about 3-5 Days
Sold As Pair or Single | Return Exception Applies*
Couldn't load pickup availability
Share
Introducing the greatest outdoor wiring product! A fast & secure direct burial connector for use with multiple speakers or any landscape wiring like lighting. Supports The BEST outdoor weatherproof and direct burial wire connection on the market.
Low voltage direct burial wire junction designed to split runs to multiple landscape devices or for T junctions. Faster than wire nuts, smaller than junction boxes, more waterproof than other 'gel filled' connectors, stronger than wire nuts, more-easily serviceable than other connectors, reusable, direct burial approved.
Utilizing the latest industry favorite, lever-nuts, we can clamp and secure wire leads for a strong connection - these connection can not be pulled apart easily, but can be easily released for service later if needed, and reused. The outer clam shell is Pre-filled with special dielectric grease to ensure a waterproof connection that will stand the test of time.

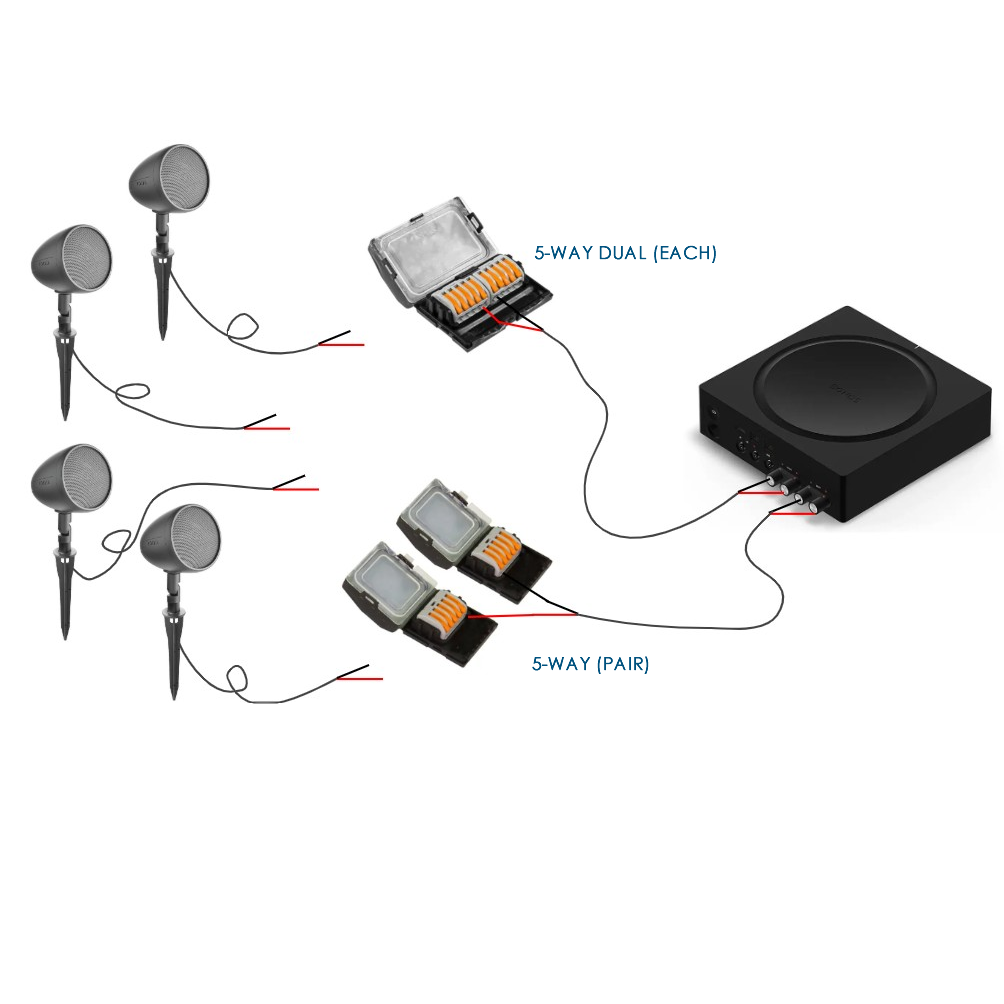

Choose the option that best suits your needed number of connections:

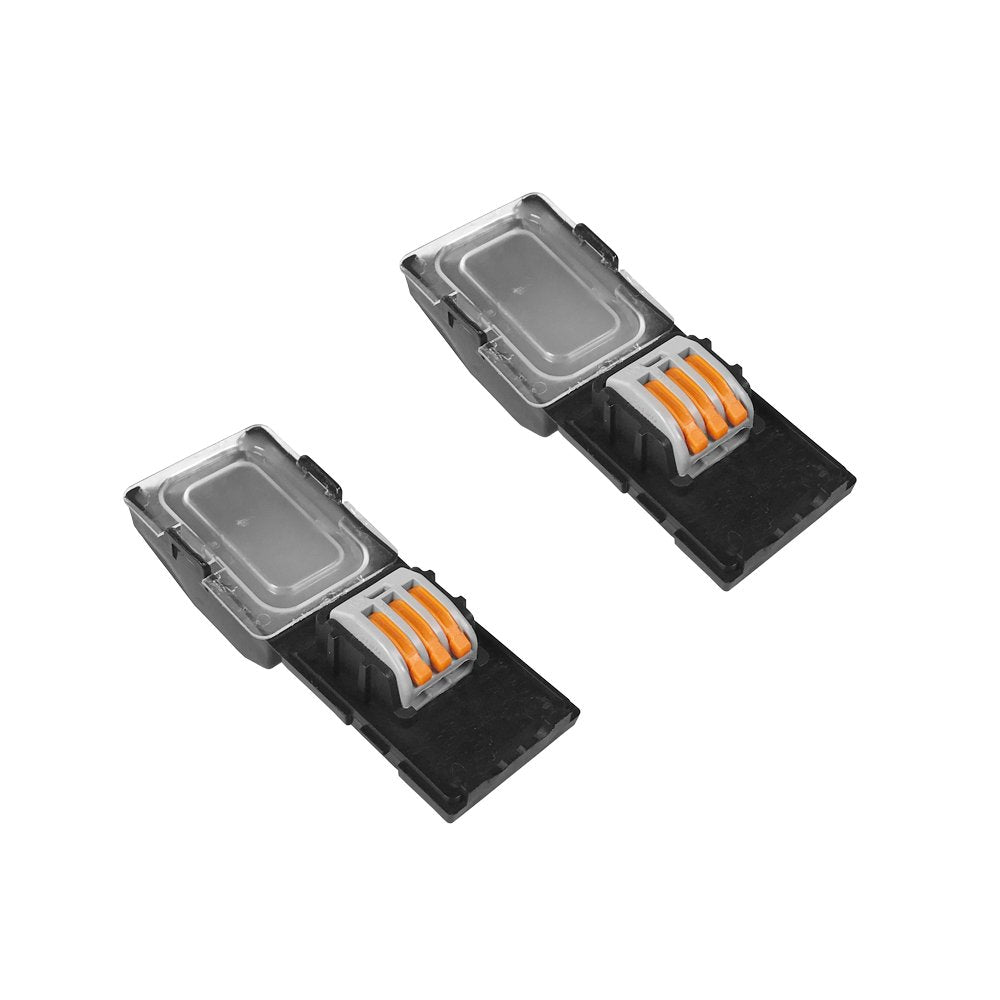

- 3-Way PAIR Supports 1 main line & two branch lines per unit (Sold as a pair for + and -).

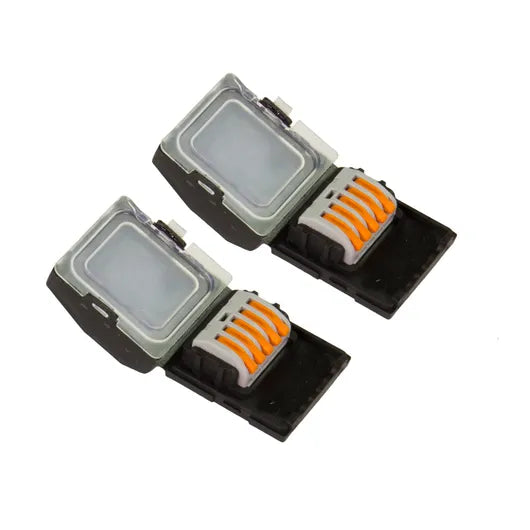

- 5-Way PAIR Supports 1 main line & four branch lines per unit (Sold as a pair for + and -).

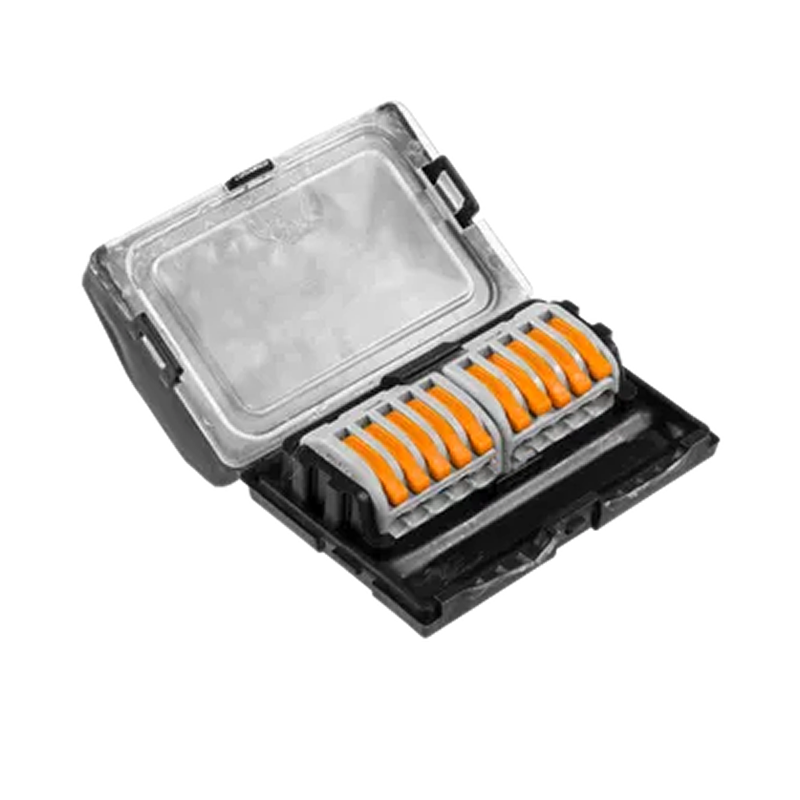

- 5-Way Dual SINGLE is like the 5-Way PAIR above but supports both + and - lines in a single housing.
*IMPORTANT This item is non-returnable if silicone cover has been opened.
Compatibility
Compatibility
Made to fit most DB (Direct Burial) and Non-DB Rated wiring from 12-28 awg
Features & Specs
Features & Specs
- Extremely strong mechanical connection thanks to built-in WAGO type connectors.
- Can also be used to make splices or T-Junctions along a wire run.
- Connector Rating - UL 486C | 600V 20A Rate
- Enclosure Rating - Direct Burial
- Supports Solid, Standard, & Fine Stranded Wire separately per wire opening.
- Support wire size from 12-28 awg
- Pack of two connectors is needed for each splice/device (one for + (positive) and one for - (negative) lines) - Accept for the 5-Way Dual model which supports both in a single unit.
- Simple operation - insert wires, flip down clamps, remove grease cap, then close connector to seal and latch.
- Professional quality - replaces large hub-style junction boxes or unreliable wire nuts.
Dimensions (each unit when closed)
3-way: 1-3/4 x 1-5/8 x 3/4" (LxWxD)
5-way: 1-3/4 x 1-1/4 x 3/4" (LxWxD)
5-way Dual: * x 1-1/4 x 3/4" (LxWxD)
*For most effective wire protection, the jacket of the wiring where cut should also be inside the enclosure, or separately treated/sealed to prevent ingress of water between conductors and jacket.
