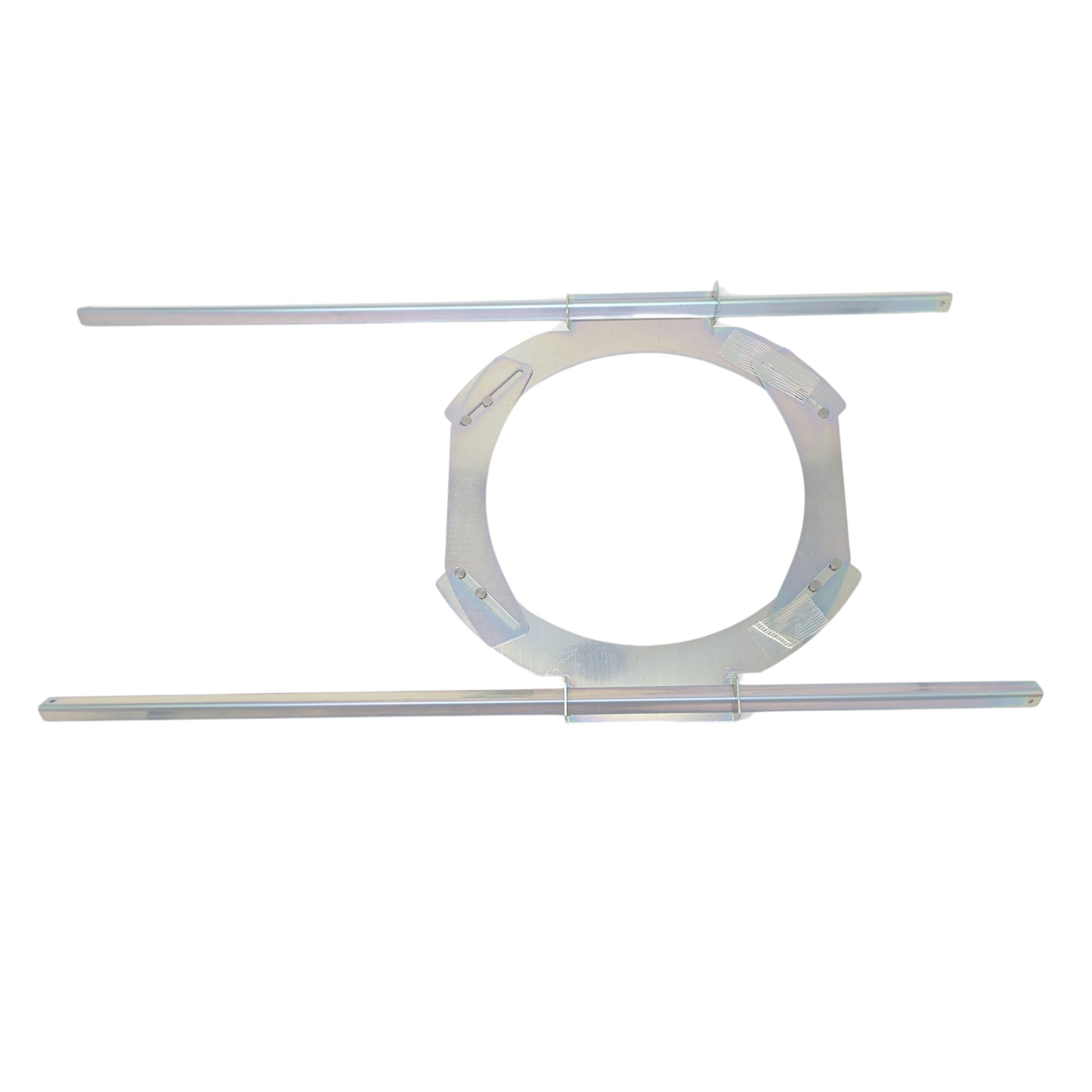

Universal Drop-Ceiling Device Support Bracket

Universal Drop-Ceiling Device Support Bracket

B70-A-DCS
Availability:Ships in about 1-5 Days
Sold As: Sold As Each
Options:
$39.99
Overview

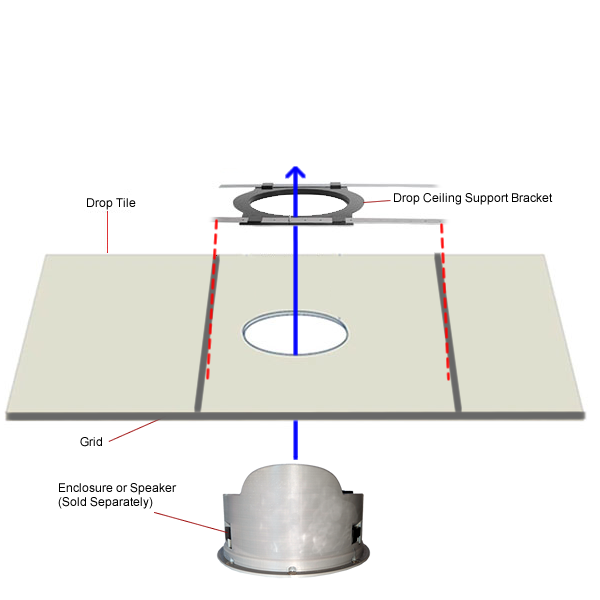

Our Universal drop-ceiling support bracket makes it easy to install our compatible SpkrShell Architectural enclosures like our CW1 series. Works with any other compatible diameter speaker, camera, light, or other device where you need to add support in an acoustic or drop-tile style ceilings. Wherever extra support should be used to prevent sagging and failure of the ceiling over time due to the weight of the product.

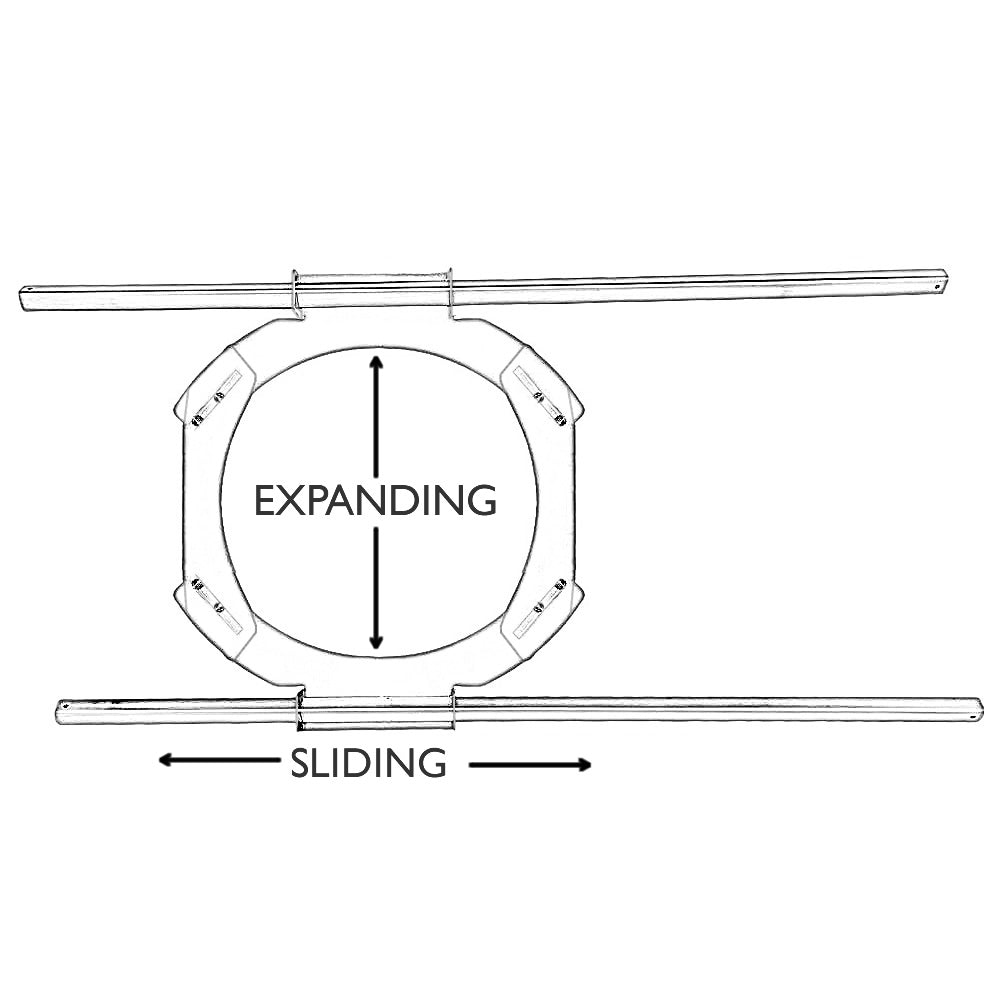

Unique design, super flexible and adjustable to most speakers, quickly and easily add our speakers or enclosures to your home or office acoustic ceilings! To determine fit, use the device or speaker manufacturers specific 'cut-out' dimension for your product, not the advertised device or speaker size.

Sold As Each

Compatibility

Designed for use with our In-Ceiling speakers and enclosure, like our SL1-S, CW1-DS, CW-R or with any speaker, camera, or other device that needs to penetrate a ceiling tile and requires additional support, if the device cut-out size is compatible.

Works with In-Ceiling Cameras from brands like:

Amcrest
Axis
Bosch
Hanwha
Hikvision
Samsung
Speco
Vicon

Or speakers from brands like:

Atlas
Beale Street
Bogen
Elura
Episode
Definitive Technology
Klipsch
Martin Logan
Monitor Audio
Russound
Red Atom
Sonance
Sonos
Triad
TruAudio

Features & Specs

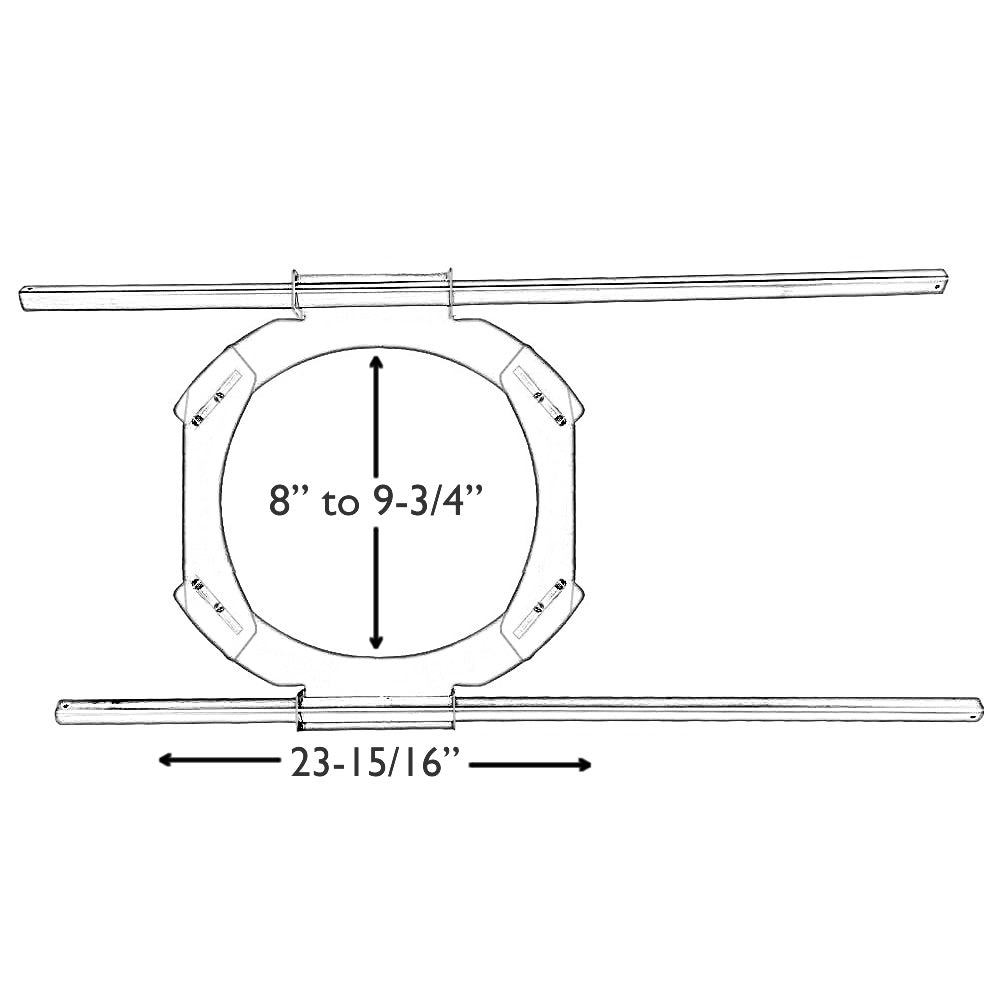

  • Support Rail length 23-15/16" (can be cut to length)
  • All metal design works great in residential or commercial applications.
  • Adjustable to fit products that have a cutout diameter of 8" to 9-3/4"
  • Holes provided for additional grid wire or safety wire attachment
